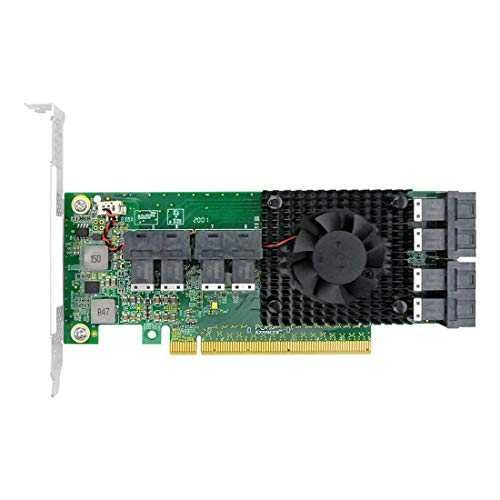

Продам DiLiVing Eight Ports PCIe NVMe Switch Adapter. Свитч PCIE 3.0, позволяет подключить восемь NVME дисков на один x16 порт материнки. Есть также кабели - отдельно могу продать нужное количество. С помощью кабелей SFF-8643 --> PCIE x4 к нему можно подключить восемь любых PCIE 3.0 устройств.

Features:

Description
LRNV9349 NVMe Series is PCI Express x16 Gen3 Multi-Host PCIe switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.

Functional Characteristics

Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0). Compliant with PCI Power Management Spec, r1.2. Microsoft Vista Compliant. Supports Access Control Services. High Performance. Non-blocking switch fabric, Full line rate on all ports. Quality of Service. Eight traffic classes per port. Reliability, Availability, Serviceability. Supports PCIe NVME ports.

Parameter Model: LRNV9349-8I
Number of drives: 8
internal Controller Chip: PLX PEX 8749
Bus Type: PCI Express
Drive Connectors: SFF-8643 (36 pin, x8/16 PCIe Gen 3)
Host Connectors: PCI Express x16
Humidity: 15% ~ 90%
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Dimension: 148mm*80mm
Weight: 150g
Warranty: 2 Years
WHAT'S IN THE BOX 1 - SFF-8643 Expansion Card 1 - high-profile bracket (installed) 1 - low-profile bracket 1
When connecting the storage Backplane of the Oculink (SFF8611) interface, the SFF-8643 TO SFF-8611 cable with the correct wiring sequence needs TO be matched. Not all cables can be connected, please choose carefully
Details:
LRNV9349-8I NVMe Series is PCI Express x16 Gen3 Multi-Host PCI-e switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms. High Performance & Low Packet Latency The LRNV9349-8I supports packet cut-thru with a maximum latency of 126ns (x16 to x16). This combined with large packet memory,flexible common buffer/FC credit pool and non-blocking internal switch architecture, provides full line rate on all ports for performance-hungry applications such as servers and switch fabrics. The low latency enables applications to achieve high throughput and performance and supports a packet payload size of up to 2048 bytes, enabling the user to achieve even higher throughput.
