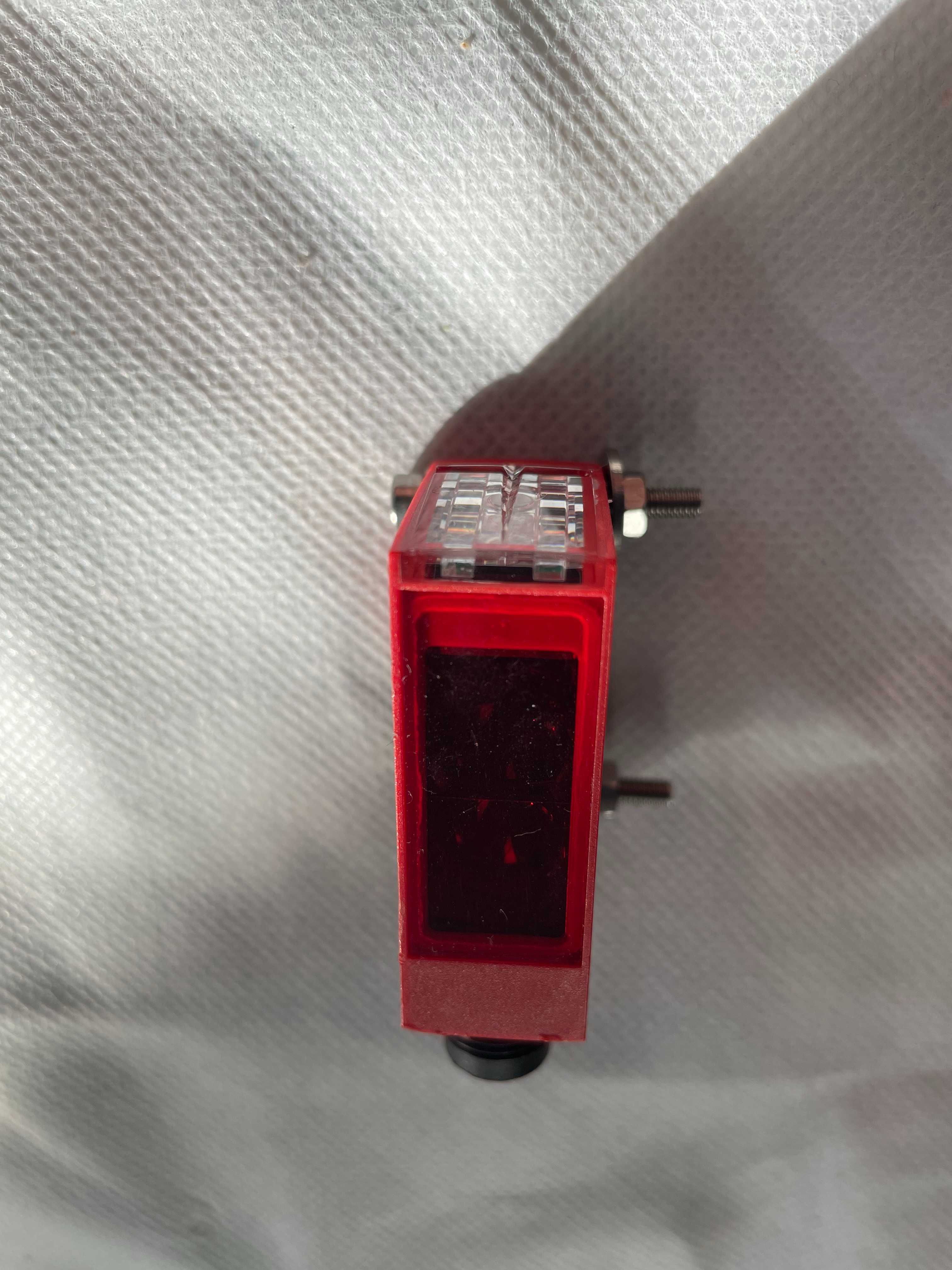

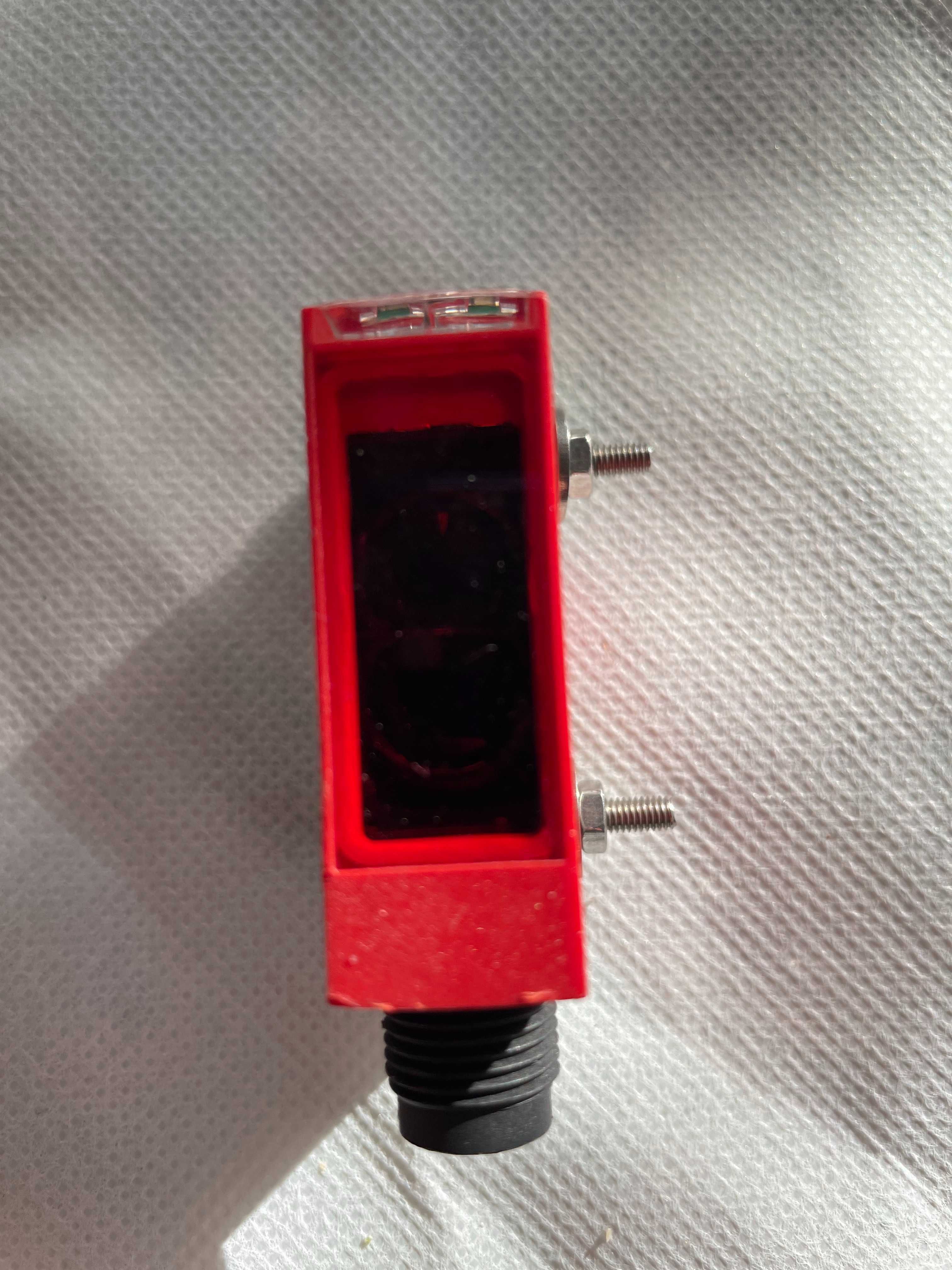

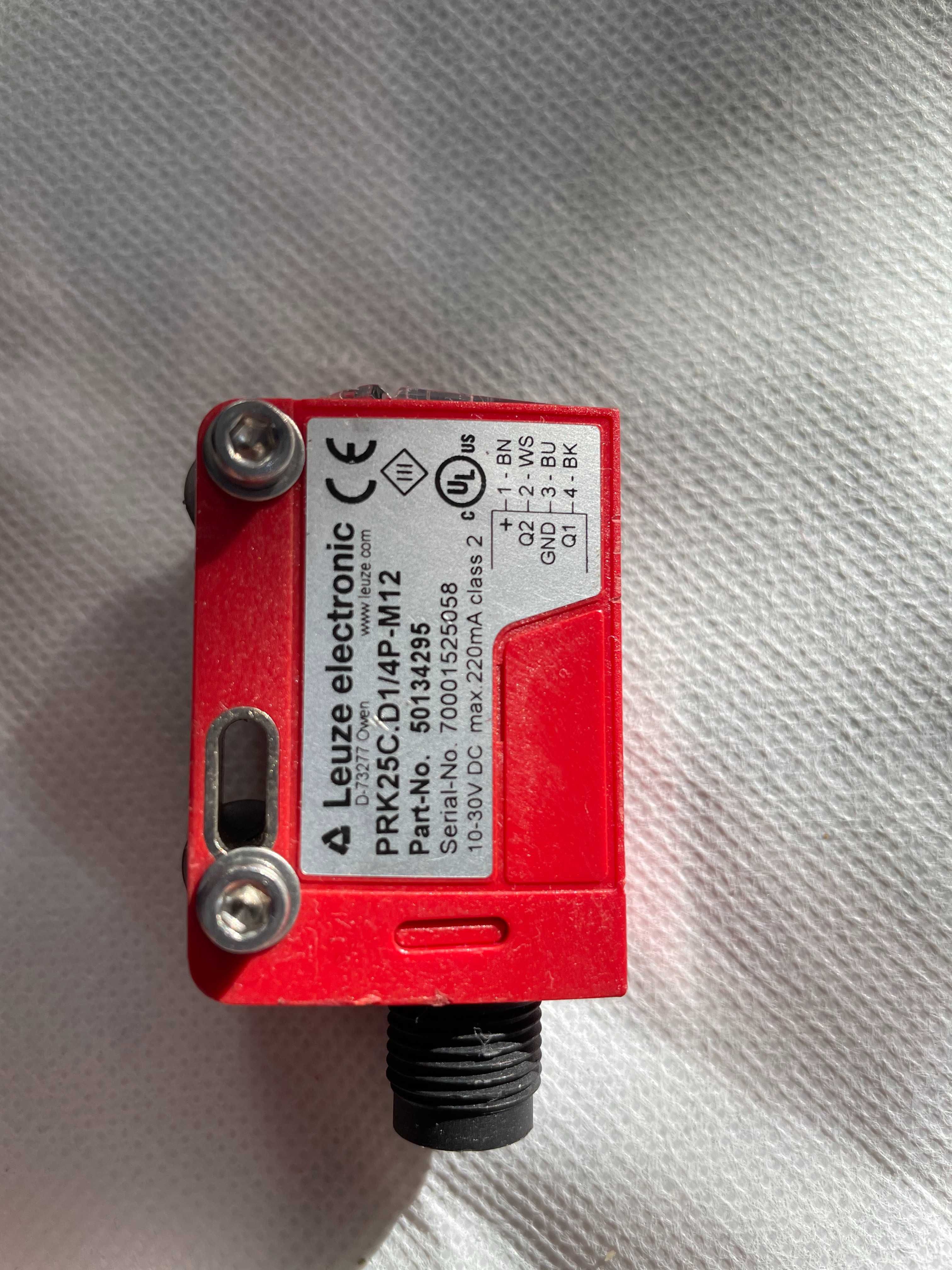

Series: 25C
Operating principle: Reflection principle
Application: Detection of stretch-wrapped objects

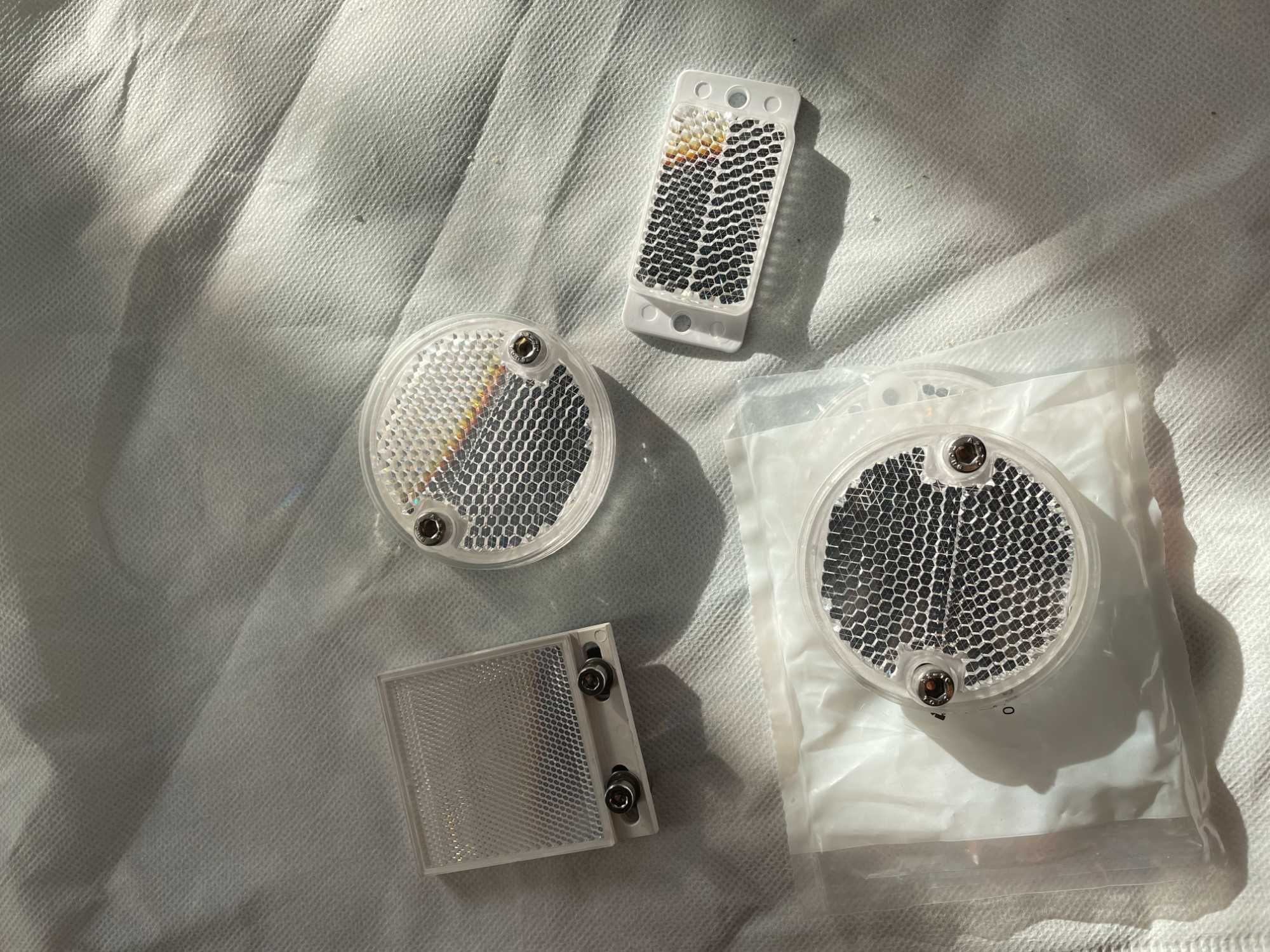

Operating range: 0 - 8 m, With reflector TK(S) 100x100
Operating range limit: 0 - 10 m, With reflector TK(S) 100x100
Light source: LED, Red
Protective circuit: Polarity reversal protection, Short circuit protected
Supply voltage: 10 - 30 V, DC, Incl. residual ripple
Residual ripple: 0 - 15 %, From U B
Open-circuit current: 0 - 20 mA
Number of digital switching outputs: 2
Switching output 1
Assignment: Connection 1, pin 4
Switching element: Transistor, PNP
Switching principle: Light switching
Switching output 2
Assignment: Connection 1, pin 2
Switching element: Transistor, PNP
Switching principle: Dark switching
Switching frequency: 1,500 Hz
Response time: 0.33 ms
Type of connection: Connector
Thread size: M12
Material: PUR
No. of pins: 4 -pin
Design: Cubic
Dimension (W x H x L): 15 mm x 42.7 mm x 30 mm
Housing material: Plastic, Diecast zinc, ABS, Metal
Lens cover material: Plastic
Type of fastening: Via optional mounting device, Through-hole mounting with M4 thread
Operational controls: 270 degree potentiometer
Ambient temperature, operation: -40 - 60 degrees Celcius
Degree of protection: IP 67, IP 69K
