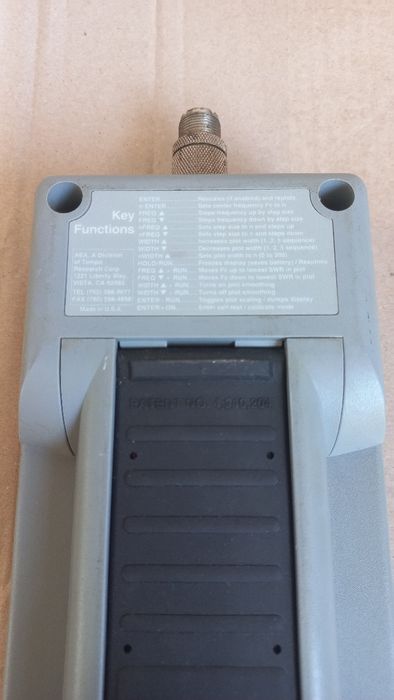

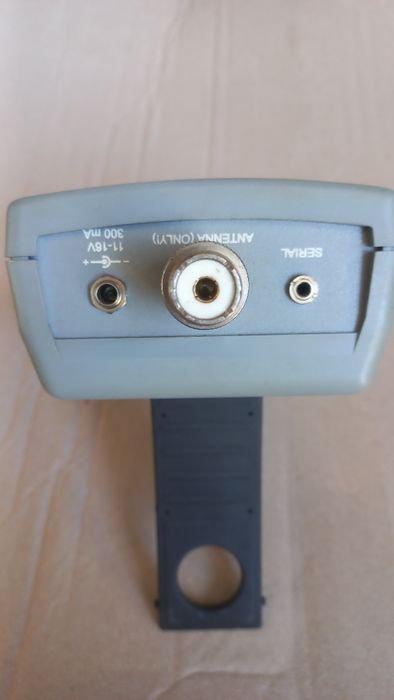

Продам аналізатор в гарному стані.
• Frequency Range . . . . . . . 120-175 MHz, 200-225 MHz,
. . . . . . . . . . . . . . . . . . . 400-475 MHz
• Default Frequency
Step Size . . . . . . . . . . . . . 10 kHz
• Manual Frequency
Step Range . . . . . . . . . . . 10 kHz to 75 MHz
• Display Resolution . . . . . 0*-1000 kHz per dot
. . . . . . . . . . . . . . . . . . . (*single frequency)
• Display Width . . . . . . . . . 0-110 MHz
. . . . . . . . . . . . . . . . . . . (110 x resolution setting)
• Impedance . . . . . . . . . . . 50 ohms
• Output Power . . . . . . . . . Approx. 5 mW into 50 ohms
• Harmonics
and Spurious . . . . . . . . . 30 dB below fundamental,
. . . . . . . . . . . . . . . . . . . typical
• SWR Range . . . . . . . . . . 1:1 to 10:1
• Return Loss Range . . . . . -0.3 dB to -50 dB
• SWR Proportional Tone . . Approx. 200 Hz x SWR value
• Accuracy . . . . . . . . . . . . . ±10% typical, when calibrated
• Power Source . . . . . . . . . lnternal batteries or external
. . . . . . . . . . . . . . . . . . . 12 to 16 VDC
• Battery Complement . . . . 8 AA Alkaline or Lithium
• Battery Saver Mode . . . . . Entered after 4 minute idle
• Display Update Time . . . Approx. 2 seconds per sweep
• Serial Port . . . . . . . . . . . . 9600 baud
• Size . . . . . . . . . . . . . . . . 4.3" W x 2.25" H x 8.5" L

Виробник
AEA Technology, США
