DreamSourceLab DS4T252 50Mhz 1mV/DIV 2Mpts портативный сенсорный

Новый с полным комплектом. По jk[ доставке +133грн к цене.

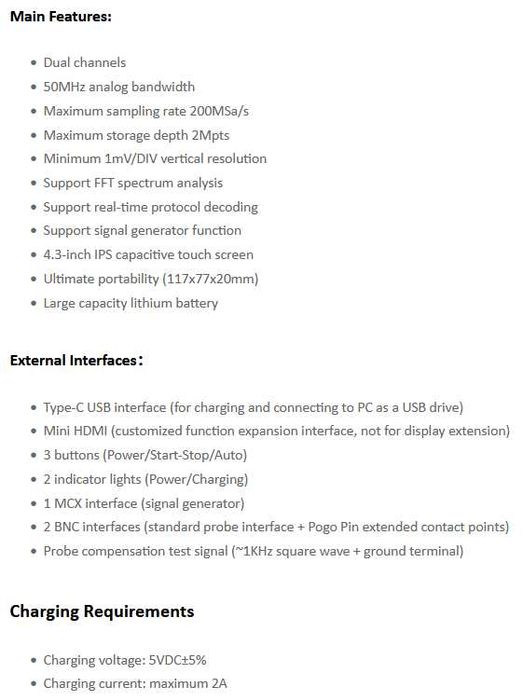

Main Features:

Dual channels
50MHz analog bandwidth
Maximum sampling rate 200MSa/s
Maximum storage depth 2Mpts
Minimum 1mV/DIV vertical resolution
Support FFT spectrum analysis
Support real-time protocol decoding
Support signal generator function
4.3-inch IPS capacitive touch screen
Ultimate portability (117x77x20mm)
Large capacity lithium battery

External Interfaces：

Type-C USB interface (for charging and connecting to PC as a USB drive)
Mini HDMI (customized function expansion interface, not for display extension)
3 buttons (Power/Start-Stop/Auto)
2 indicator lights (Power/Charging)
1 MCX interface (signal generator)
2 BNC interfaces (standard probe interface + Pogo Pin extended contact points)
Probe compensation test signal (~1KHz square wave + ground terminal)

Charging Requirements

Charging voltage: 5VDC±5%
Charging current: maximum 2A

Product List

DSTouch DS4T252 Host x1
USB Data Cable x1
60MHz Bandwidth Probes x2
MCX to BNC Signal Cable x1
Carrying Case x1
