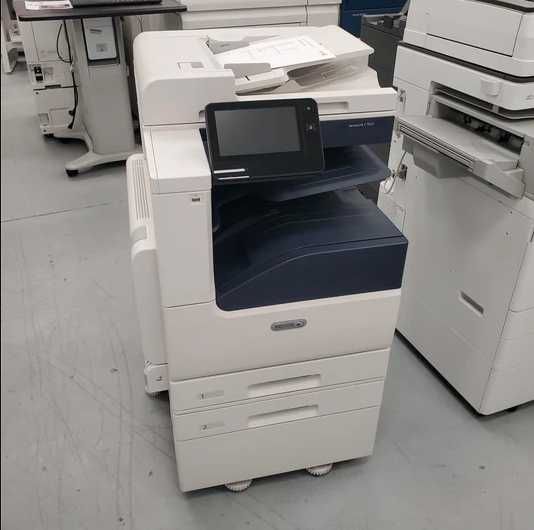

Запчасти разборка Xerox VersaLink C7020 C7025 C7030 B7025 B7030 B7035
Xerox WorkCentre WC 7525, 7530, 7535, 7545, 7556 Parts
Xerox WorkCentre WC 7120 7225 Parts

Есть все узлы платы и механизмы.
сканеры сборе,линейки сканера

Компоненты сканера:
802E63030 Blind Cover
802E67240 Blind Cover
117E21691 IIT-ESS Cable
802E64372 IIT Rear Cover
017E92060 Foot
130K64150 APS Sensor 1, APS Sensor 2
110K11960 Platen Interlock Switch
130E87280 Platen Angle Sensor
127K38620 IPS Fan
127K38632 Lamp Fan
127K38641 Charge Coupling Device Fan
120K91990 Actuator
962K20213 IIT Wire Harness
962K19802 Cable
023E21370 Belt
127K38491 Carriage Motor ( REP 5.33)
020E36980 Capstan Pulley
012K94480 Front Carriage Cable (Black)
012K94490 Rear Carriage Cable (Silver) ( REP 5.35)
020E21630 Pulley
604K20440 Spring Kit
041K94525 Full Rate Carriage ( REP 5.34)
041K94553 Half Rate Carriage
826E06490 Screw
133K23611 Memory (128MB)
960K28771 IIT/IPS PWB
160K99673 YATA PWB
122E92130 Exposure Lamp
105E12301 Lamp Ballast PWB
062E10040 Mirror
809E51350 Clip (Single)
