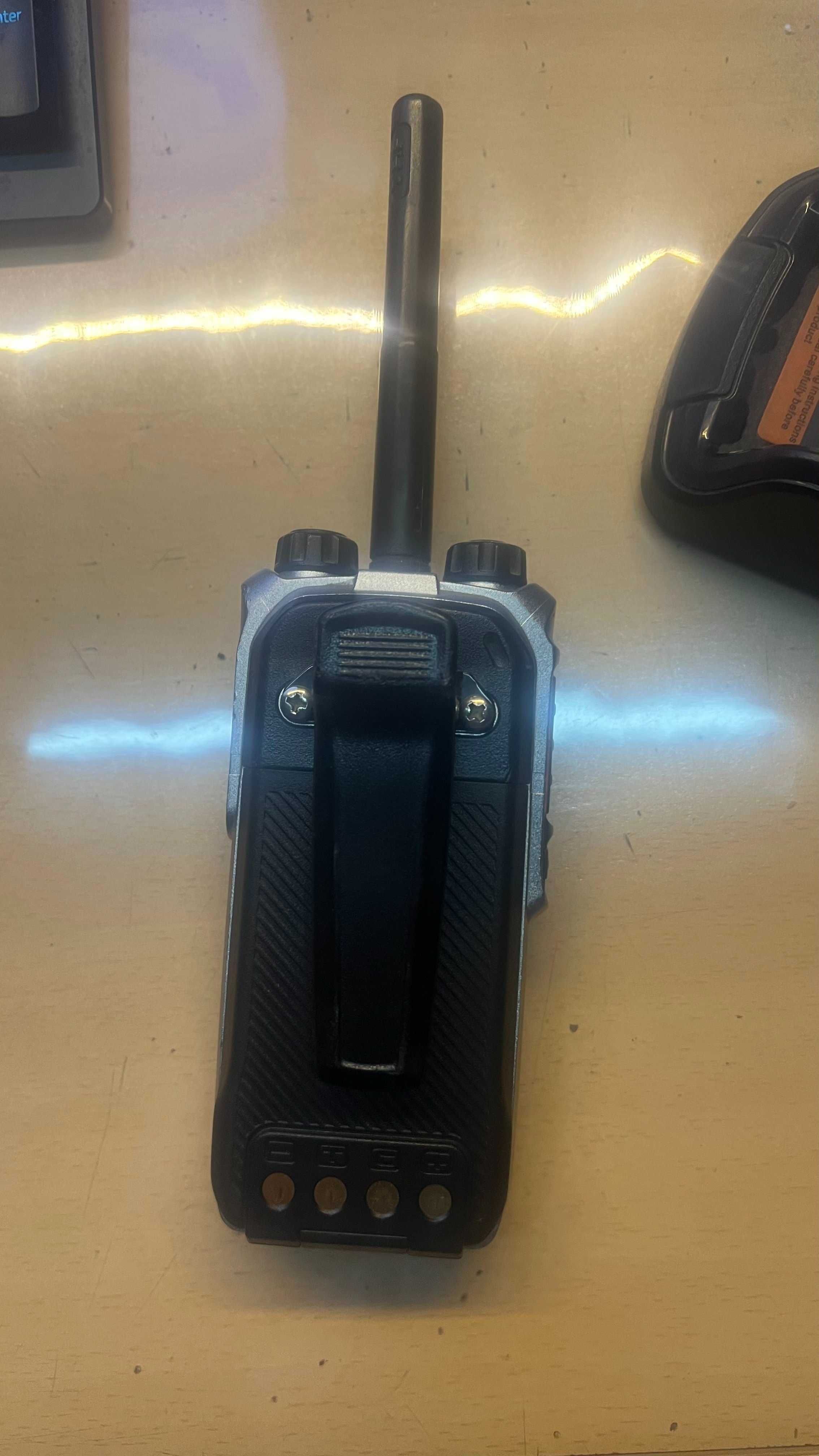

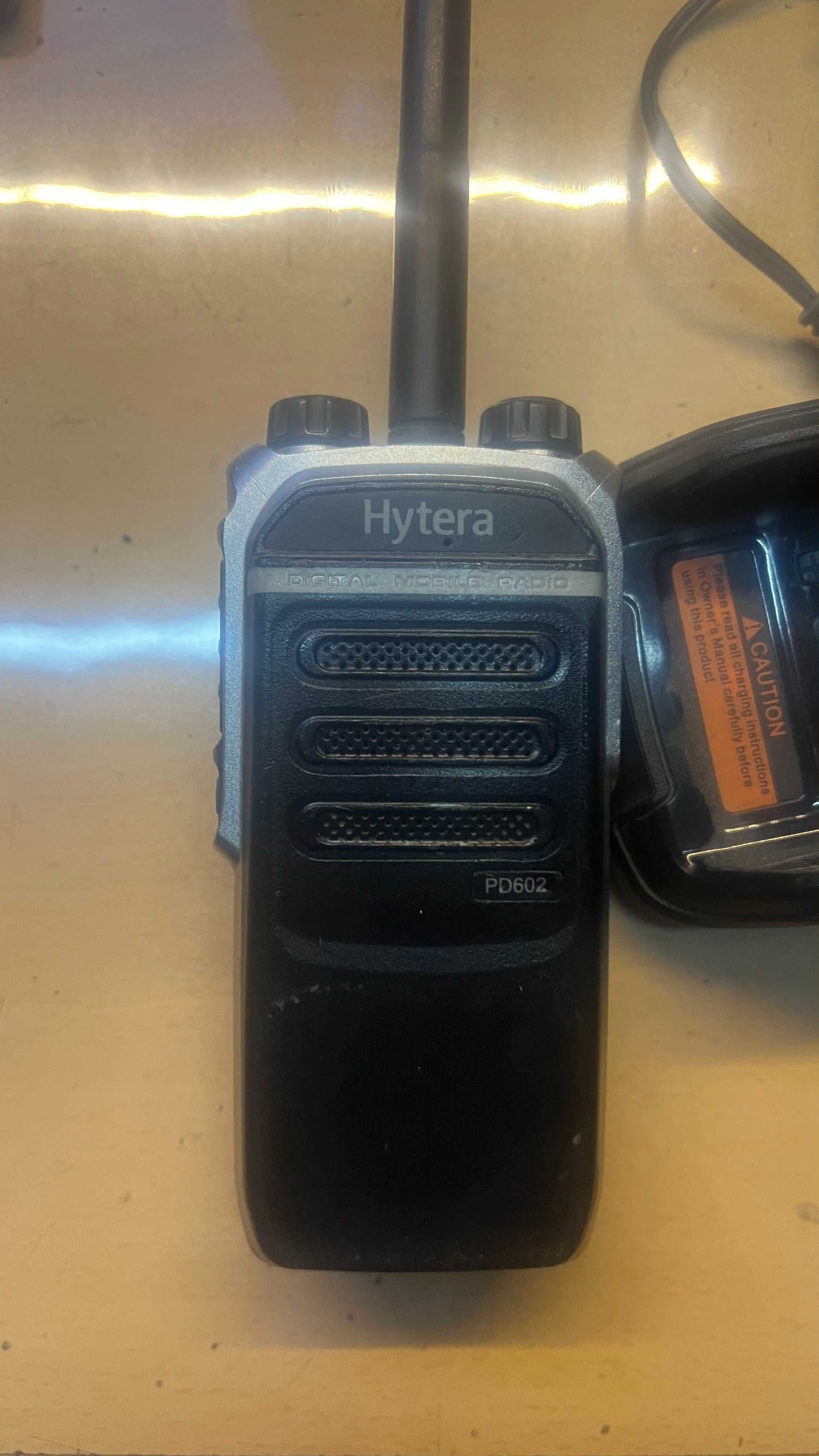

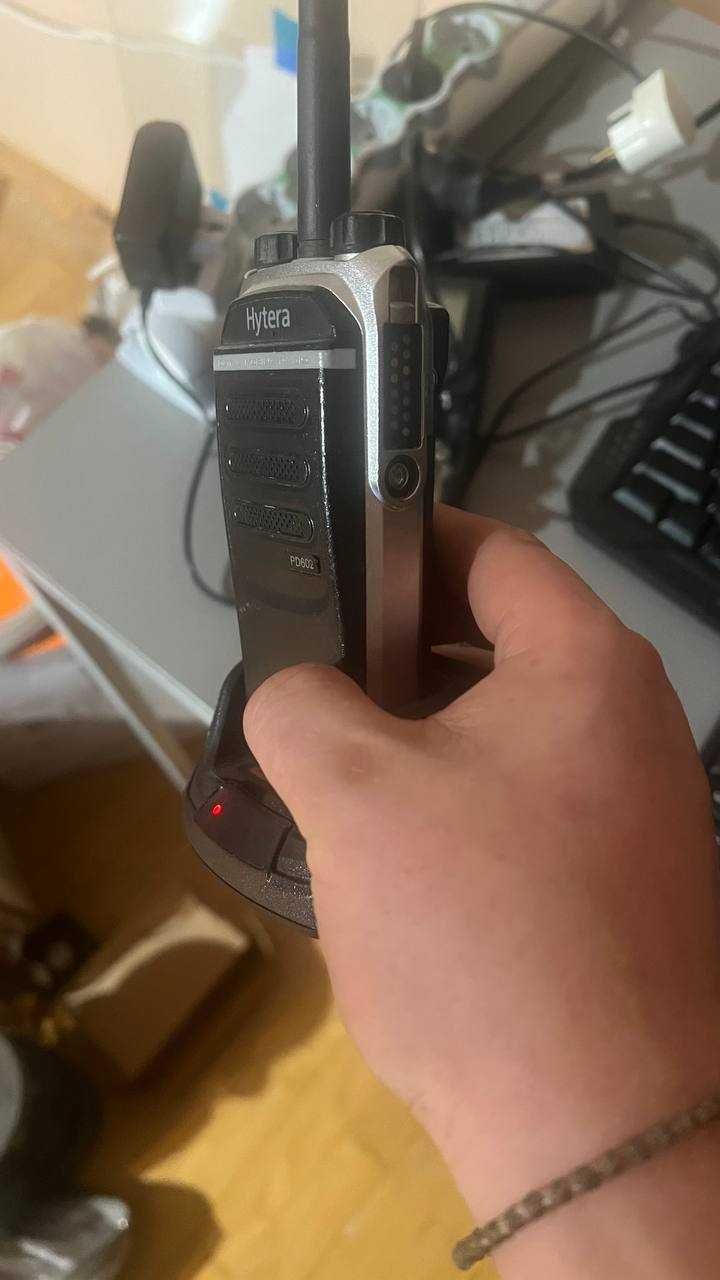

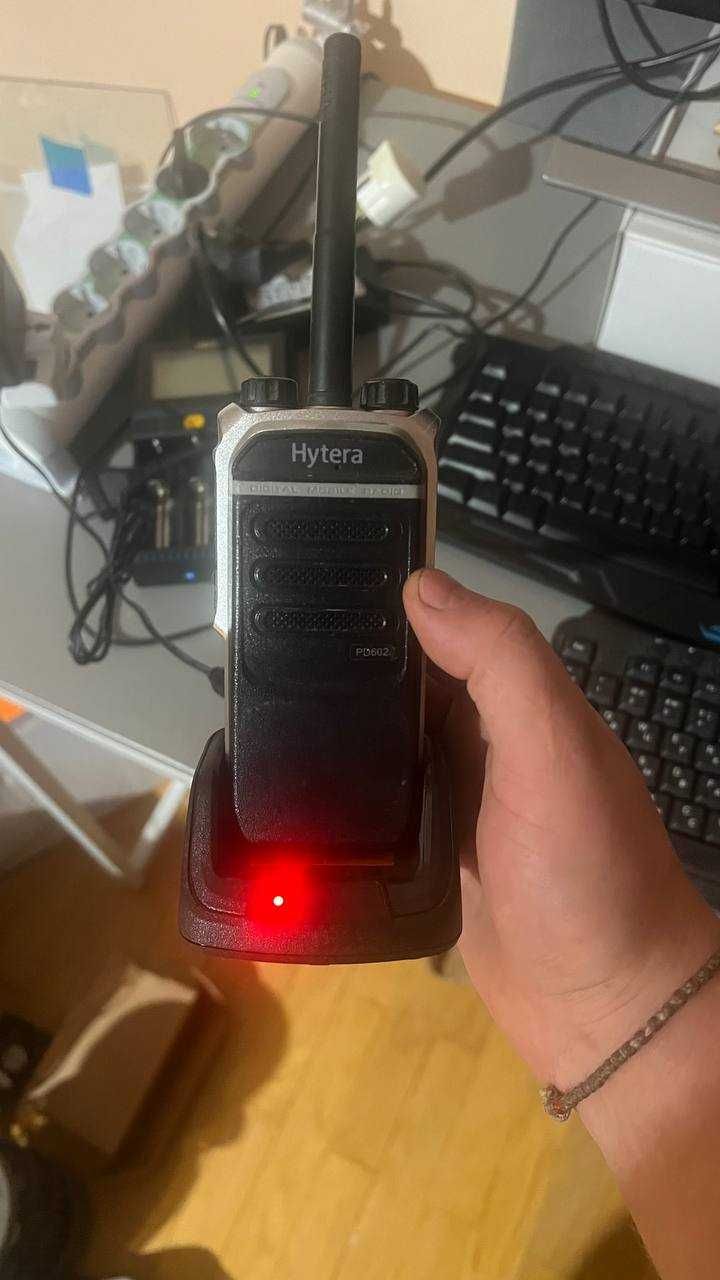

Рабочая, продаю за ненадобностью.

General data

Frequency range

VHF: 136 - 174 MHz
UHF: 400 - 527 MHz

Channel capacity 48
Zone capacity 3

Channel spacing

25/20/12.5 kHz (analog)
12.5 kHz (digital)

Operating voltage 7.4 V

Battery 1500 mAh (Li-Ion)

Battery service life (5/5/90)

approx. 11 h (analog)
approx. 16 h (digital)

Frequency stability ±0.5 ppm

Antenna impedance 50 Ω

Dimensions (H×W×D) 4.7 x 2.13 x 1.1 inches

Weight 10.23oz

Transmitter

RF Power Output

HF: High 5W - Low 1W
UHF: High 4W - Low 1W

FM Modulation
(Analog Emissions Designator)

11K fF3E 4KfF3E 20KHz ;
16KfF3E 25KHz

4FSK Digital Modulation
(Digital Emissions Designator)

2.5KHz Data Only: 7K6fFXD
2.5KHz Data & Voice: 7KfFXW

Conducted/Radiated Emission

-36 dBm 1 GHz
-30 dBm > 1 GHz

Modulation limiting

±2.5 kHz at 12.5 kHz
±4.0 kHz at 20 kHz
±5.0 kHz at 25 kHz

FM Hum & Noise

40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz

Adjacent Channel Power

60 dB at 12.5 kHz
70 dB at 20/25 kHz

Audio Response

+1 dB to -3 dB

Audio Distortion

≤ 3%

Digital vocoder type

AMBE++ or SELP

Digital Protocol

ETSI-TS102 361-1, 2&3

Receiver

Sensitivity (analogue)

0.22 μV (12 dB SINAD)
0.22 μV (typical) (12 dB SINAD)
0.4 μV (20 dB SINAD)

Sensitivity (digital)

0.22 μV / BER 5%

Adjacent channel selectivity
TIA-603
ETSI

60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz
60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz

Intermodulation
TIA-603
ETSI

70 dB at 12.5/20/25 kHz
70 dB at 12.5/20/25 kHz

Spurious response rejection
TIA-603
ETSI

70 dB at 12,5/20/25 kHz
70 dB at 12.5/20/25 kHz

Spurious response rejection

40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz

Nominal audio power output

0.5 W

Nominal audio distortion

≤ 3 %

Audio sensitivity

+1 dB to -3 dB

Conducted spurious emission

-57 dBm

Environmental Specs

Operating temperature range

-30 °C to +60 °C

Storage temperature range

-40 °C to +85 °C

ESD

IEC 61000-4-2 (level 4)
±8 kV (contact discharge) ±15 kV (air discharge)

Protection against dust and moisture

IP67

Shock and vibration resistance

MIL-STD-810 C/D/E/F/G

Relative humidity

MIL-STD-810 C/D/E/F/G

GPS (nur PD605G)

TTFF (cold start)

1 minute

TTFF (warm start)

10 seconds

Horizontal Accuracy

10 meter
