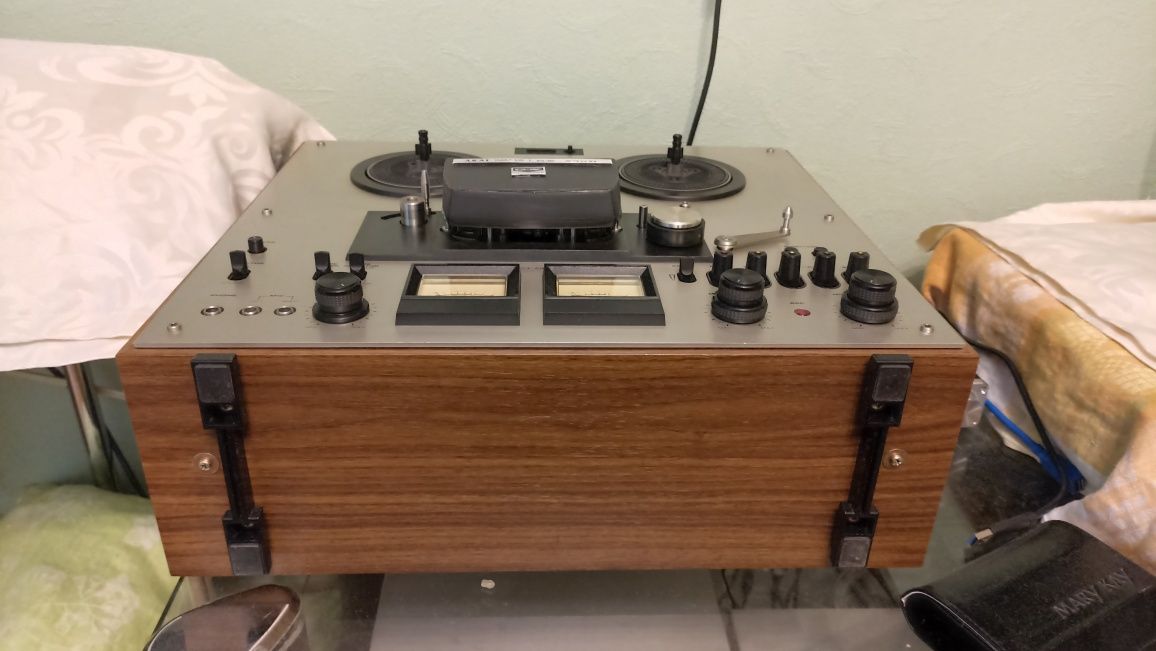

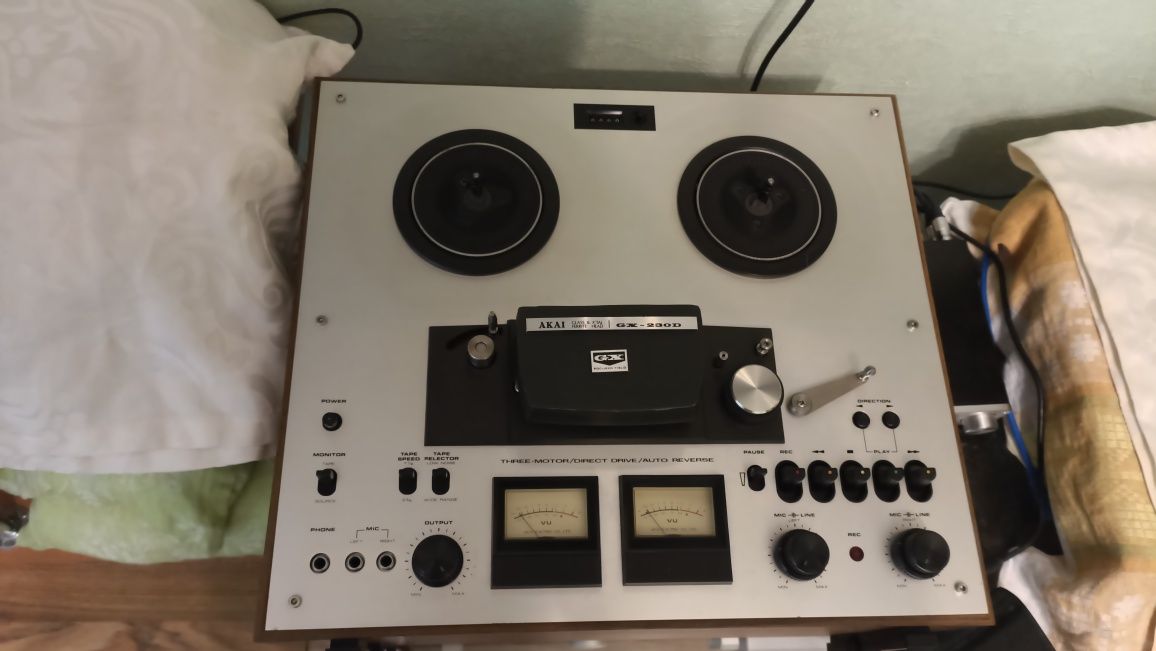

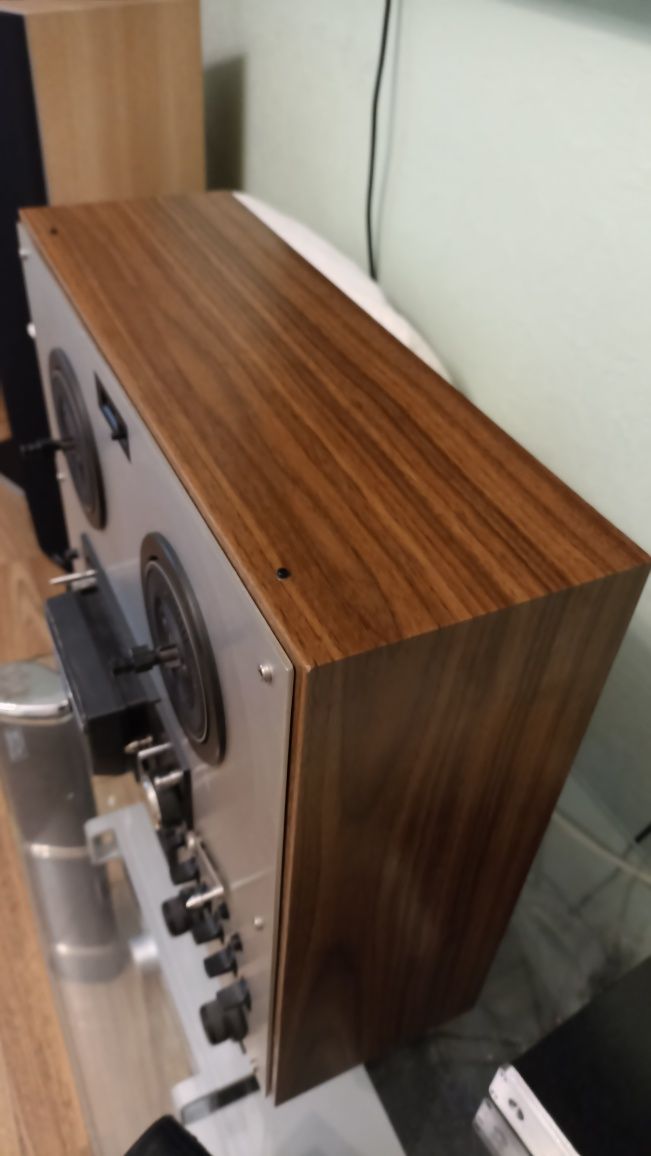

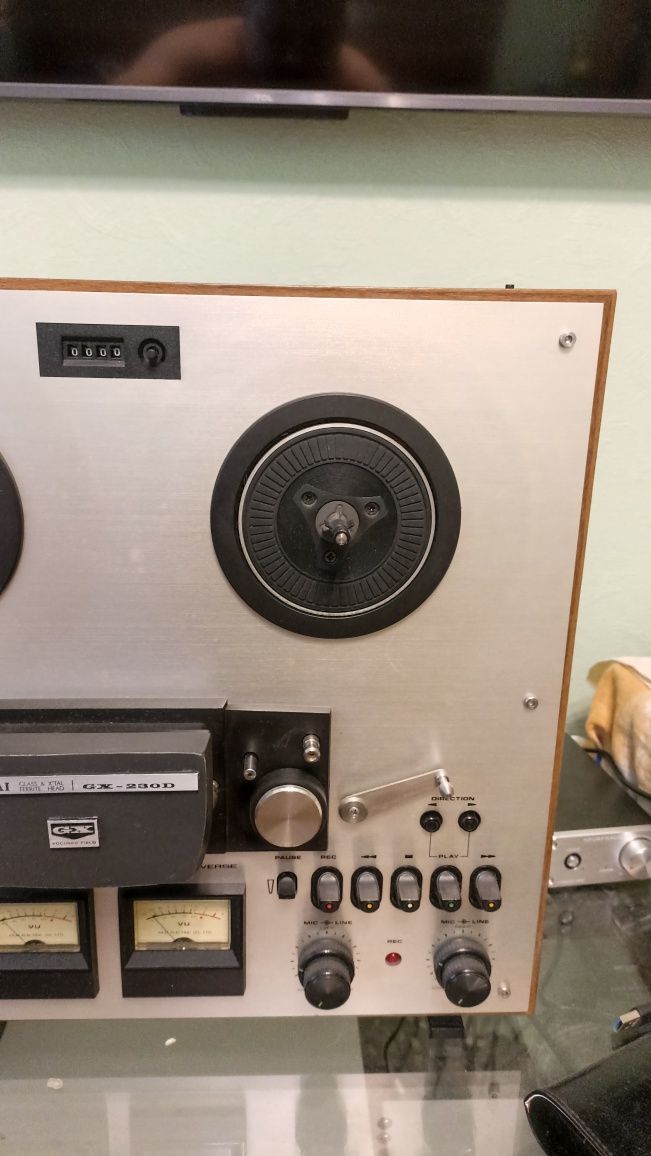

магнитофон AKAI 230D в идеальном полностью рабочем состоянии. Все функции воспроизведения и записи работают, автостоп и реверс так же работают. Макентош в идеальном состоянии, защитная крышка отсутствует.

Характеристики:
Track System: 4 track 2 channel stereo system

Reel Capacity: Up to 7 reel

Tape Speed: 7-1/2 and 3-3/4 ips (±0.7%)

Wow and Flutter:

Less than 0.06% RMS at 7-1/2 ips

Less than 0.08% at 3-3/4 ips

Frequency Response:

30 Hz to 23,000 Hz (±3 dB) at 7-1/2 ips using Akai LN-150-7 Tape

30 Hz to 19,000 Hz (±3 dB) at 3-3/4 ips using Akai LN-150-7 Tape

Distortion: Less than 1% (1,000 Hz "0" VU)

Signal-to-Noise Ratio: Better than 55 dB (with peak recording level of +6VU)

Erase Ratio: Better than 70 dB

Bias Frequency: 100 KHz

Heads:

1 GX Forward Playback

1 GX Reverse Playback

1 combination GX Recording/Erase Head



Motors:

1 AC Servo Motor for capstan drive

2 eddy current motors for reel drive

Fast Forward and Rewind Time: 75 sec. using a 1,200 ft. tape

Output Jacks:

Line 0.775V ("0" VU) (Required load impedance: more than 20 K ohms)

Phone (1): 30 mV

Speaker (2): Continuous power output: 7 watts per channel minimum RMS at 8 ohms load impedance from 100 Hz to 20,000 Hz, both channels fully driven to rated per channel power with no more than 3% total harmonic distortion

Input Jacks:

Microphone (2): 0.3 mV/4.7 K ohms

Line (2): 70 mV

Din Jack: Input 3 mV/Output 0.5 V



Semi Conductors:

GX-230: Transistors 41; Diodes 32; Ic`s 2

GX-230D: Transistors 41; Diodes 28

Power Requirements: 220V, 50 Hz

Dimensions: 440x395x205 mm

Weight: GX-230 16.7 kg; GX-230D 15.2 kg
