Если поддерживается Arch linux то плата на все случаи жизни с поддержкой Gigabit Ethernet и Real SATA Port

pcDuino3Nano Lite is a high performance, cost effective single board computer. It runs operation systems such as Ubuntu Linux and Android. pcDuino3Nano Lite has HDMI interface to output its graphic desktop screen. It could support multi-format 1080p 60fps video decoder and 1080p 30fps H.264 and MPEG4 video encoder with its built-in hardware video processing engine. It targets specially the fast growing demands from the open source community. pcDuino3Nano Lite provides easy-to-use tool chains and is compatible with the popular Arduino ecosystem such as Arduino Shields.

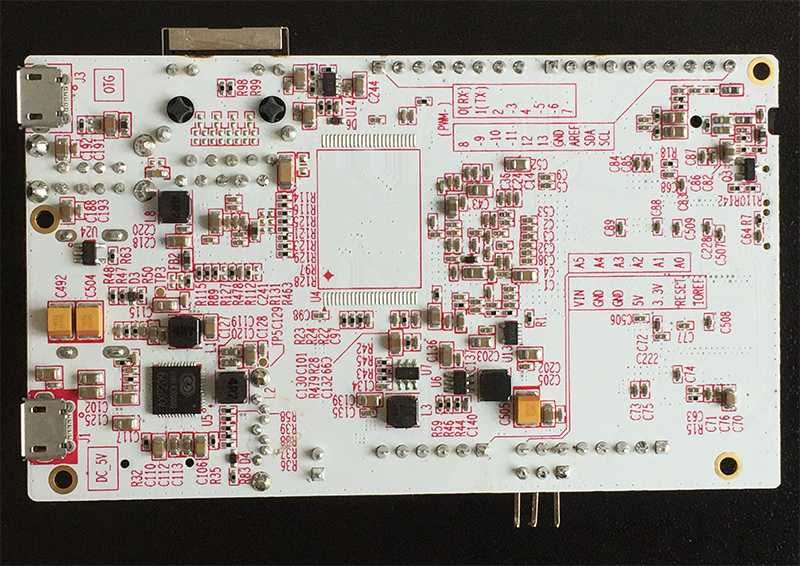

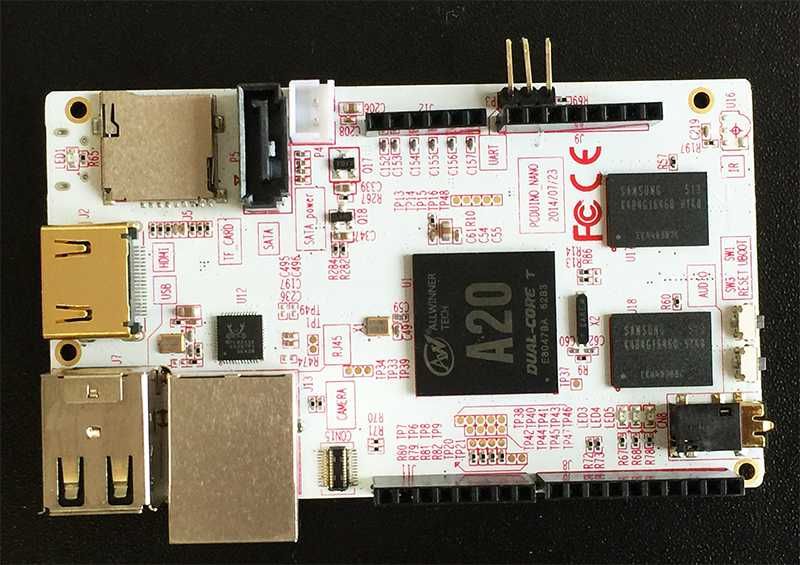

pcduino3nano_lite1 pcduino3nano_lite2

Note: The difference between pcDuino3Nano and pcDuino3Nano Lite is that pcDuino3 Nano lite has no flash and no IR receiver.

Hardware Specifications
Items Details
CPU AllWinner A20 SoC, 1GHz ARM Cortex A7 Dual Core
GPU OpenGL ES2.0, OpenVG 1.1, Mali 400 Dual Core
DRAM 1GB
Onboard Storage NO Flash, microSD card (TF) slot for up to 32GB
Video Output HDMI 1.4 with HDCP support
OS

Ubuntu 12.04
Android 4.2

Arduino extension interface Arduino sockets, same as Arduino UNO
14xGPIO, 2xPWM, 6xADC, 1xUART, 1xSPI, 1xI2C
Network interface

Ethernet 10M/100M/1Gbps

Audio out

3.5mm analog audio interface


IR NO IR receiver
SATA SATA Host socket
Camera MIPI

USB 2 x USB host, 1xUSB OTG
Power 5V, 2000mA
Overall Size 3 5/8 ” x 2 1/8″

Software Specifications
Items Description
OS

Ubuntu 12.04
Android 4.2

Language

English

API

All the arduino shield pins are accessible with the provided API
It consists of API to access the following interfaces:
UART
ADC
PWM
GPIO
I2C
SPI

Programming language support

C, C++ with GNU tool chain
Java with standard Android SDK
Python



Hardware

Hardware headers
DXF file for pcDuino3 nano
Schematic

Software

Software OS Image for pcDuino3 Nano

Book:

Complete handbook
