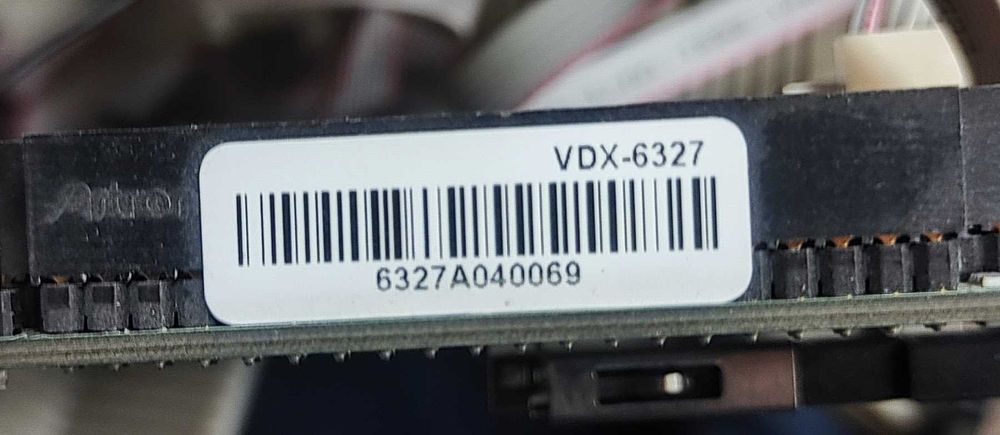

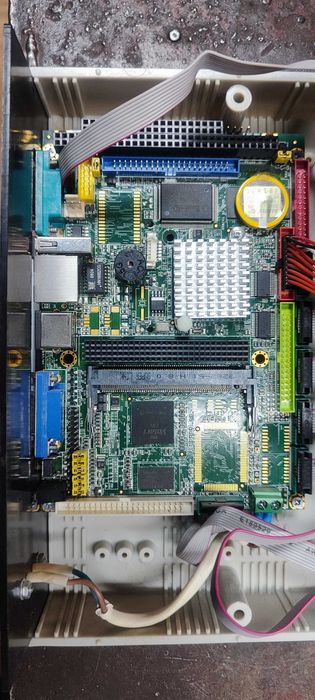

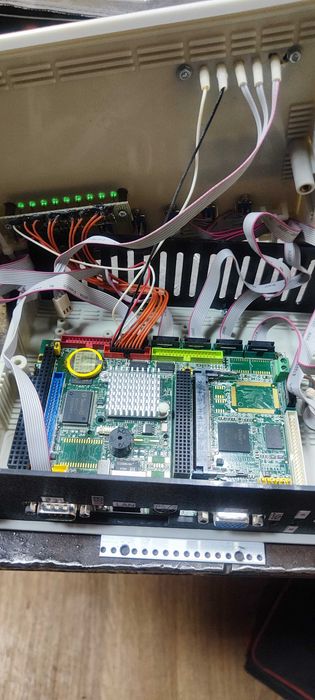

VDX-6327
CPU DM&P SoC CPU Vortex86DX- 800MHz
Real Time Clock with Lithium Battery Backup
Cache L1:16K I-Cache, 16K D-Cache L2:128KB Cache
BIOS AMI BIOS
Bus Interface PC/104+ Standard Compliant
System Memory 256/ 512MB DDR2 Onboard
Watchdog Timer Software programmable from 30.5 us to 512 seconds x2
sets(Watchdog 1 fully compatible with M6117D)
VGA XGI Volari Z9s Chipset
VGA and TFT Flat Panel Interface Support
LVDS Flat Panel Interface Support
Onboard 32MB VGA Memory
Support resolution up to 1280 x 1024,16MB colors
LAN Integrated 10/100M Ethernet
I /O Interface Enhanced IDE port (UltraDMA-100/66/33) x1
FDD port x1
RS-232 port x7
RS-232/422/485 port x1 (RS-485:Auto Direction)
Parallel port x1
USB port x3 (USB 2.0 version)
16-bit GPIO port x1
10/100Mbps Ethernet port x1
Connectors 2.00 mm ? 44-pin box header for IDE x1
2.00 mm ? 44-pin box header for LCD x 1
2.00 mm ? 34-pin box header for FDD x1
2.00 mm ? 26-pin box header for Printer x1
2.00 mm ? 20-pin box header for 16-bit GPIO x1
2.00 mm ? 16-pin header for LVDS x 1
2.00 mm ? 10-pin box header for RS-232 x7
2.00 mm ? 10-pin box header for USB x1
2.54 mm ? 4-pin header for DC-in x1
2.54 mm ? 3-pin header for RS-485 x1
2.54 mm ? 2-pin header for Reset x1
1.25 mm ? 6-pin wafer for JTAG x1
0.8mm ? 124-pin MiNi PCI connector x1

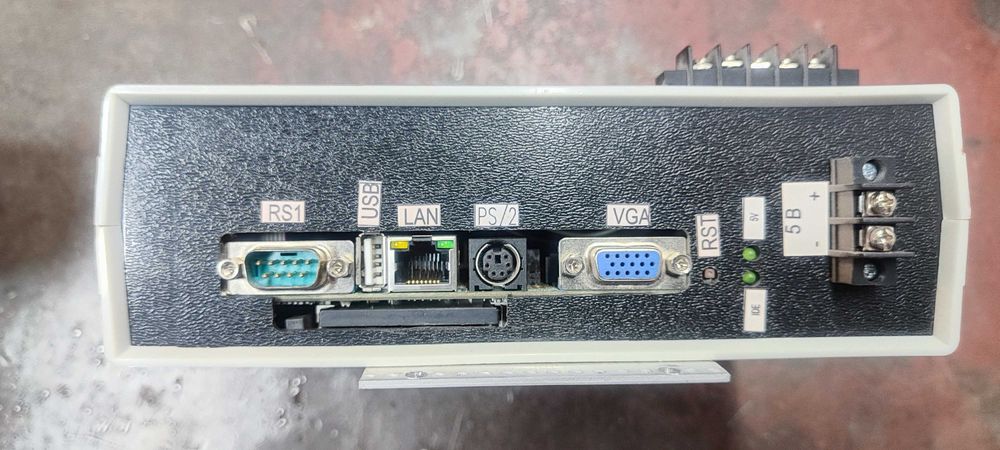

External 15-pin D-Sub female connector for VGA x1
External 9-pin D-Sub male connector for RS-232 x1
External RJ-45 connector for Ethernet x1
External USB connector for x1
External Mini DIN socket for Keyboard/Mouse x1
Type I/II Compact Flash slot x1
Vortex86DX-6327 3.5” CPU Module 4
Flash Disk Support Onboard 4MB SPI Flash Disk (Driver: A)
44-pin IDE Flash Disk( EmbedDisk 16MB or above)
Type I/II CF Card
44-pin IDE to Micro SD (Optional)
PWM 16~24 Channels
SRAM support 512KB (Optional)
Power Requirement Single Voltage +5V 840mA
