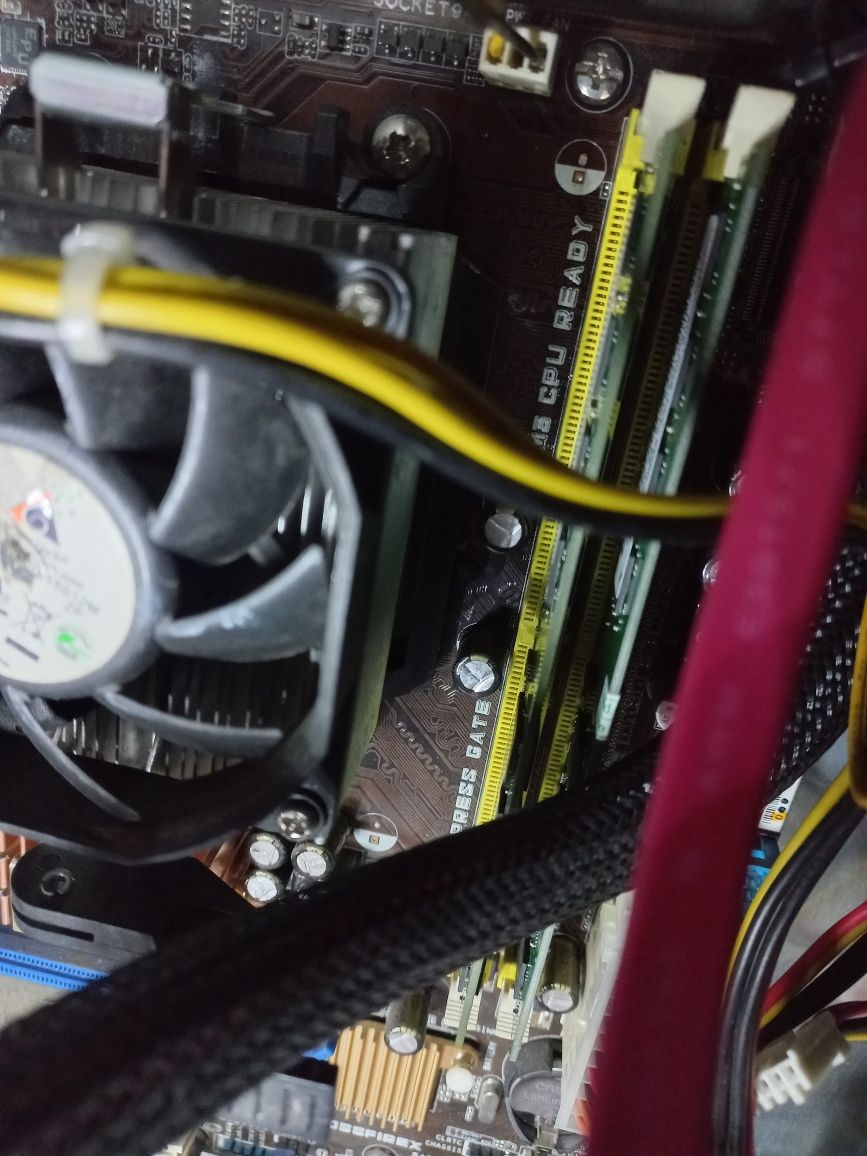

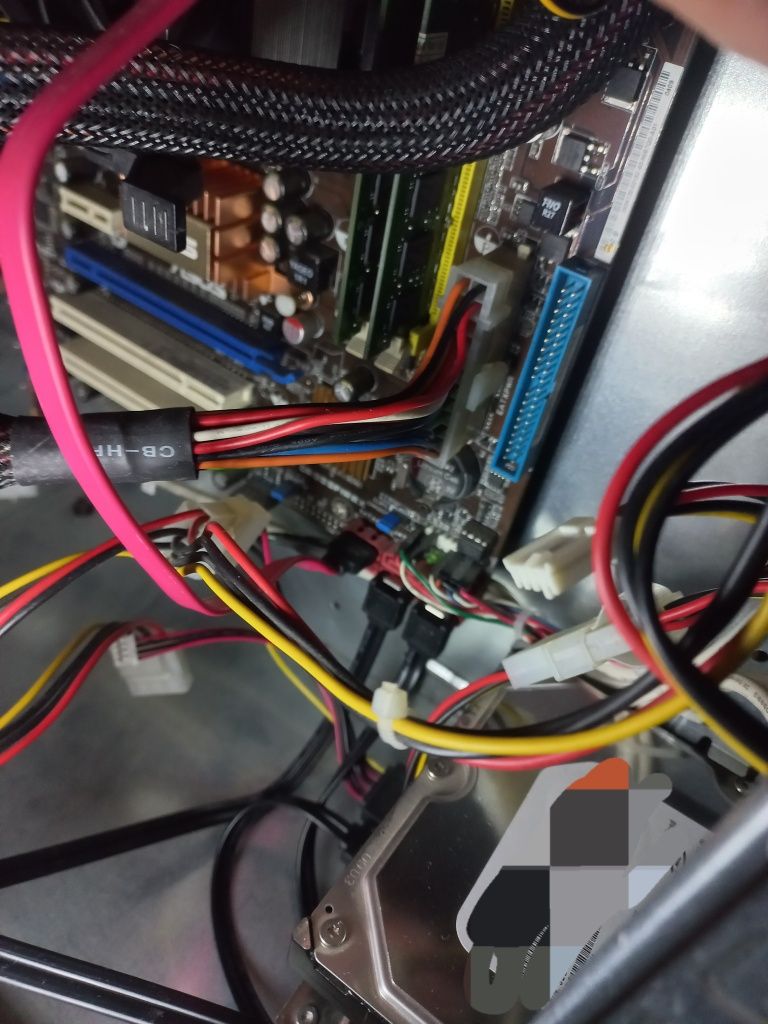

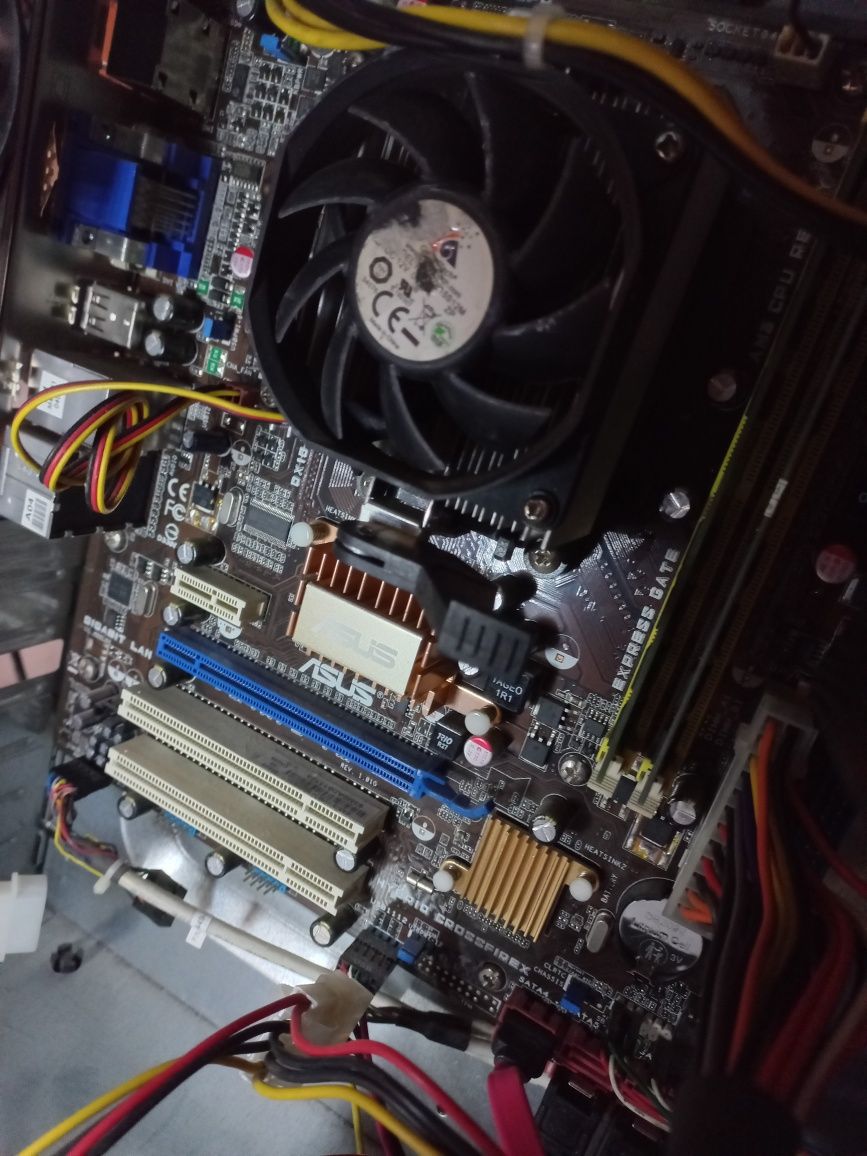

Материнская плата/материнська плата Asus M4A78-VM, формат микро/мікро ATX, рабочая/робоча. С/з процессором/процесором AMD Athlon 64 X2 Dual core Processor 4400+, 2300 mHz (Rev. G2), и/та с/з оперативной памятью/оперативною пам'яттю Hynix DDR2-800 (2*2 Gb) - 4 Gb.
*Поддержка памяти/підтримка пам'яті до 8 гб.
Встроенная видеокарта/вбудована відеокарта: max. 256 mb. Разъёмы/роз'єми: VGA, HDMI, DVI;
*На PCI express 2.0 x16 - можно установить видеокарту/можна встановити відеокарту.
На плате есть разъём IDE для устройств со шлейфом/на платі є роз'єм IDE (например/наприклад: HDD ide);
Продаётся всё/продається все вместе/разом.
* есть корпус для данной материнской платы/є корпус для даної мат. плати, +580 грн.
Характеристики Asus M4A78-VM:
CPU/процессор/процесор (Socket AM2+/AM2):
Phenom™ X4 / Phenom™ X3 / Athlon™ X2 / Athlon™ /
Sempron™ processors (socket AM2+ / AM2)
Compatible with Phenom™ II / Athlon™ X4 / Athlon™ X3
/ Athlon™ X2 (AM3 CPU)
Support 45nm CPU
AMD Cool ‘n’ Quiet™ Technology
Support CPU up to 125W
* Refer to www.asus.com for the AMD CPU support list;
Chipset/чипсет:
AMD 780G / SB700;
System bus Up to 5200 MT/s; HyperTransport™ 3.0 interface for AM3 /
AM2+ CPU
2000 / 1600 MT/s for AM2 CPU;
Memory/память/пам'ять:
Dual-channel memory architecture
2 x 240-pin DIMM slots support maximum 8GB unbuffered
ECC and non-ECC DDR2 1200(O.C.)/1066*/800/667MHz
memory modules
* DDR2 1066 is supported by AM2+ / AM3 CPU only.
(Qualified Vendors List).
*** When you install a total memory of 4GB capacity or more,
Windows® 32-bit operating system may only recognize less
than 3GB. We recommend a maximum of 3GB system memory
if you are using a Windows 32-bit operating system;
Expansion slots/слоты расширения/слоти розширення:
1 x PCI Express™ 2.0 x16 slot
1 x PCI Express™ x1 slot
2 x PCI slots
Storage:
1 x UltraDMA 133/100 connector
6 x Serial ATA 3Gb/s connectors support RAID 0, RAID 1, and
RAID 0+1 configurations (* For Windows® Vista only);
Graphics:
ATI Radeon HD3200
Maximum shared memory of 256 MB
Supports DVI-D with HDCP compliant with max. resolution
2560 x 1600 60Hz dual-link
Supports HDMI™ Technology with max. resolution up to
1920 x 1200 (1080P)
Supports RGB with max. resolution 2048 x 1536 85Hz
Hybrid CrossFireX™ Support (for Windows® Vista only)
Dual VGA out support: RGB & DVI and RGB & HDMI
* Refer to www.amd.com for the Hybrid CrossFireX selected
GPUs.
** To playback the HD-DVD and Blu-ray Disc, we recommend
system configuration: Graphic shared memory 256MB/DualCore CPU minimum/maximum 1GB memory of Dual-channel
DDR2 667 or Single-channel DDR2 800;
ASUS overclocking fetures/характеристики для разгона частоты/характеристики для розгону частоти:
SFS (Stepless Frequency Selection) from 200MHz to 550MHz
at 1 MHz increment
Adjust DRAM Voltage
ASUS C.P.R. (CPU Parameter Recall);
ASUS special features:
ASUS Q-Fan
ASUS CrashFree BIOS3
ASUS EZ Flash2
ASUS AI NET 2
ASUS EPU-4 Engine
ASUS Express Gate
ASUS MyLogo2
ASUS Q-Button (AI NAP / Turbo Key);
LAN/локальная сеть/локальна мережа:
PCIe Gb LAN;
Audio:
ALC887 High Definition Audio 8-channel CODEC
- Supports Jack-detect and Multistreaming technology
- Supports S/PDIF out interface;
USB:
Supports up to 12 USB 2.0/1.1 ports (6 port at mid-board,
6 ports at back panel);
Back panel I/O ports:
1 x PS/2 Keyboard/Mouse Combo port
1 x RJ45 port
1 x S/PDIF Out port (Optical)
6 x USB 2.0/1.1 ports
8-channel Audio ports
1 x DVI port
1 x HDMI port
1 x VGA port;
Internal I/O connectors:
3 x USB 2.0/1.1 connectors support additional
6 USB 2.0/1.1 ports
1 x LPT connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x High Definition Front panel audio connector
1 x system panel connector
1 x CD audio-in connector
1 x S/PDIF Out connector
1x CPU/Chassis/Power Fan connectors
24-pin ATX power connector
4-pin ATX 12V power connector;
BIOS:
8Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0,
ACPI2.0a, SM BIOS v2.5;
Form Factor/форм-фактор:
microATX form factor: 9.6’’ x 8.8’’ (24.4cm x 22.4cm)
