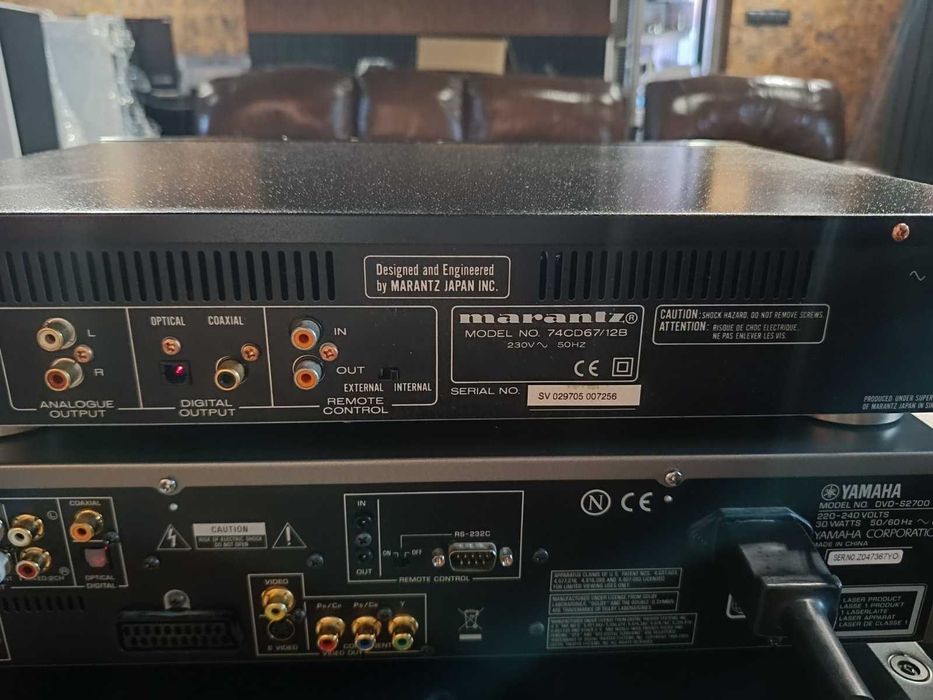

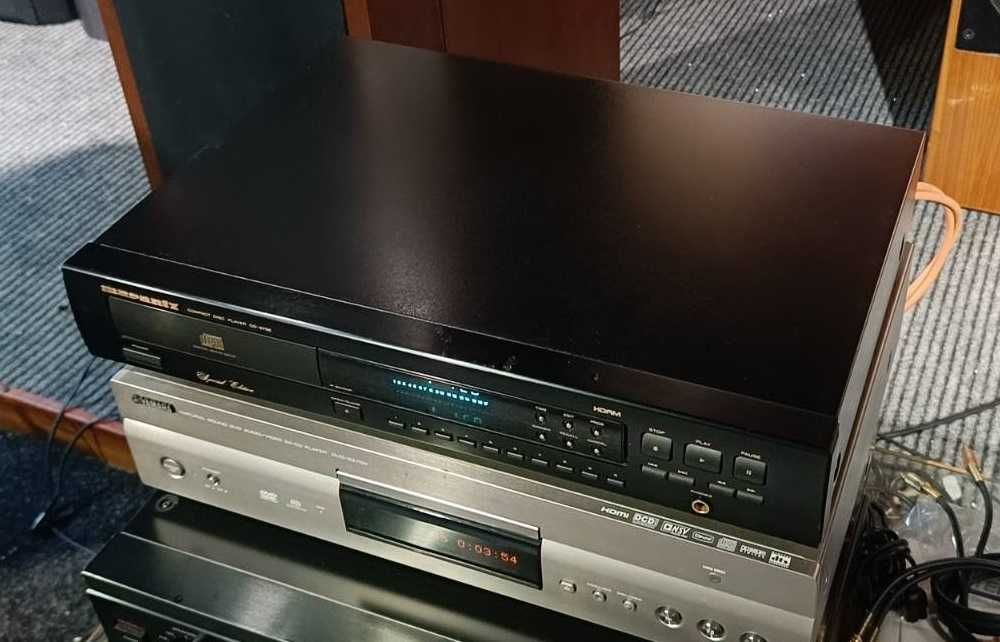

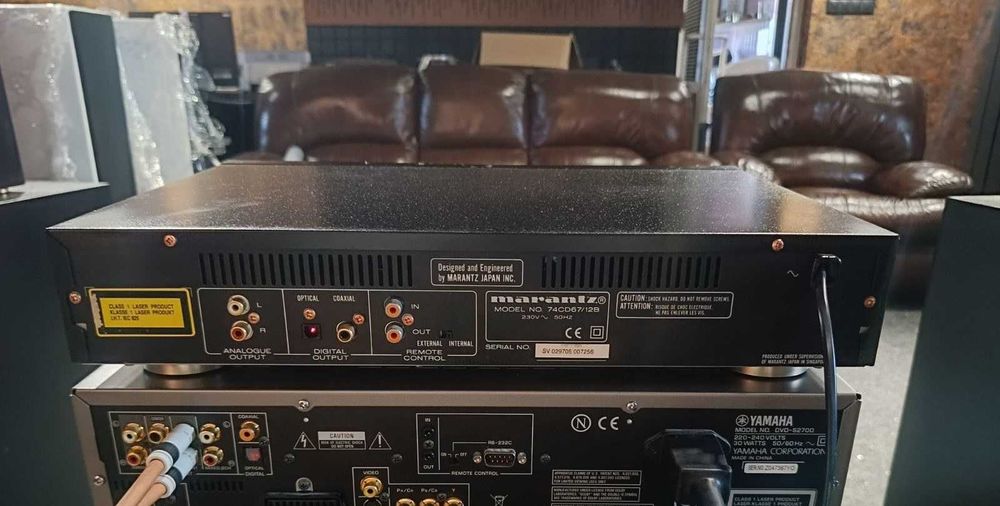

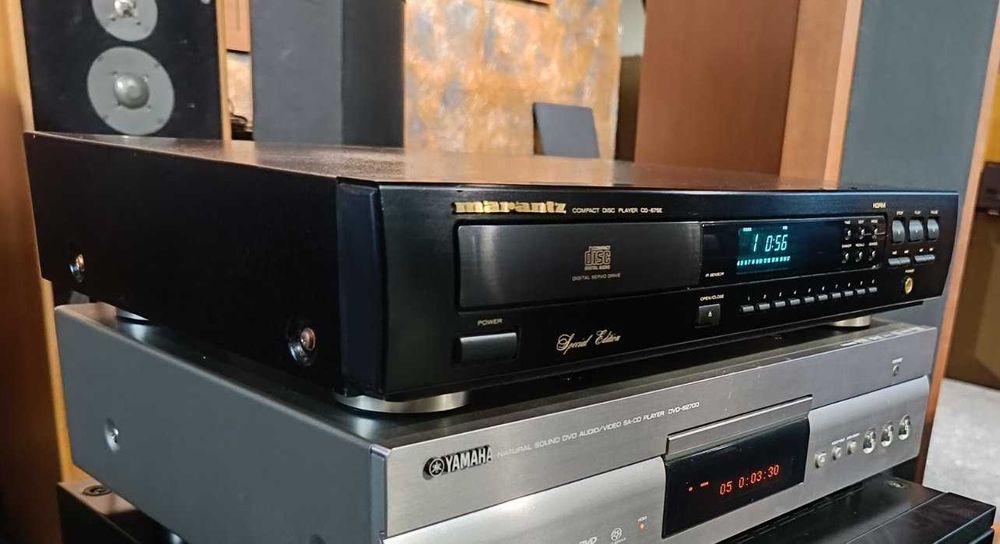

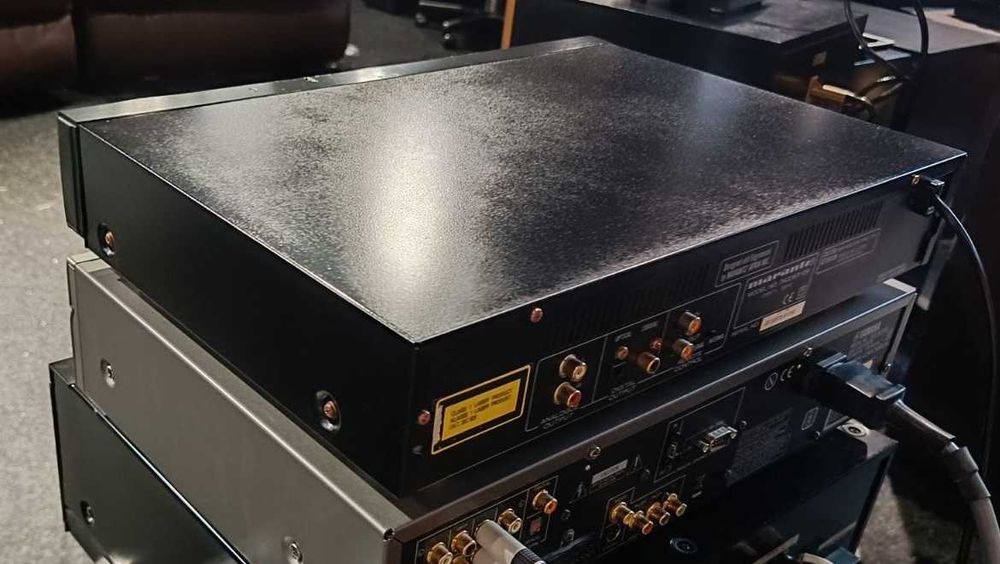

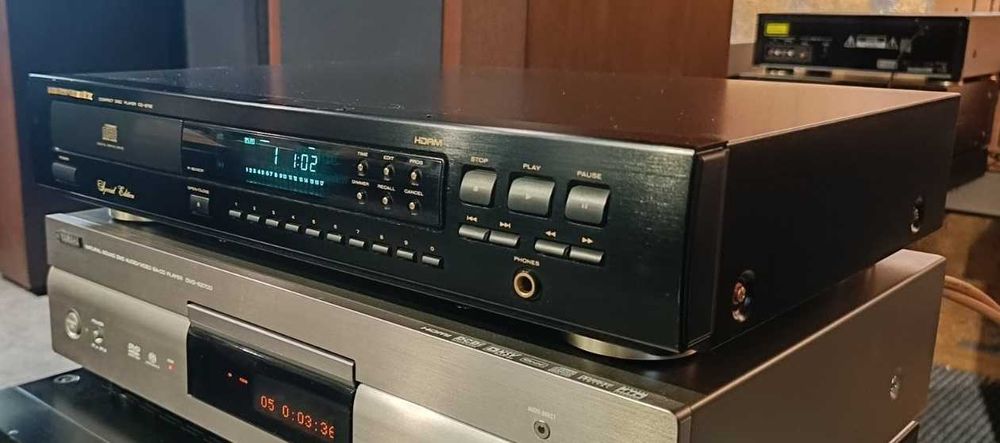

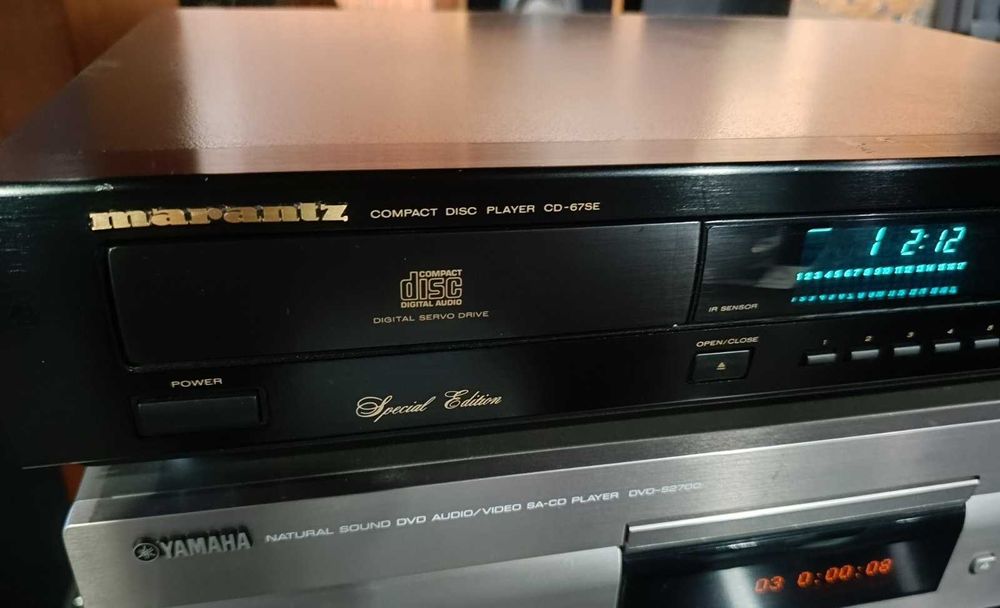

Marantz CD-67SE програвач CD

технічно 100% справний
косметика дуже добре

Чудовий програвач аудіофільського класу по розумній ціні, дуже музикальний апарат, прекрасна, точна, детальна подача муз матеріалу..

This CD player is a special edition of CD-67.

A large power transformer using OFC winding is adopted to improve regulation.

The center of gravity is lowered by adding the anchor base to the bottom chassis.
We've also enhanced our thin chassis.

Philips CDM-12.1 is used for the mechanism part.

18-bit DAC is used for the DA conversion part.

The HDAM circuit is mounted.

Equipped with two digital output terminals that are coaxial with the optical system.

Wireless remote control is included.

Number of Transistors
Semiconductors present.
Semiconductors
Main principle
Audio-Amplification
Wave bands
- without
Details
CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
Power type and voltage
Alternating Current supply (AC) / 230 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: Compact Disc Player CD-67SE - Marantz Sound United LLC;
Shape
Book-shelf unit.
Dimensions (WHD)
439 x 88 x 310 mm / 17.3 x 3.5 x 12.2 inch
Notes
Marantz Frontloading Single Compact Disc Player Model CD-67SE. Disc format: CD Digital converter: SM5872, 1 bit linear CD Mechanism: CDM-12.1 Frequency response: 5Hz to 20kHz Dynamic range: 96dB Signal to Noise Ratio: 104dB Channel separation: 102dB Total harmonic distortion: 0.0025% Line output: 2V Digital outputs: coaxial and optical Accessories: Marantz Remote Control Model RC-63CD.

Net weight (2.2 lb = 1 kg)
5.8 kg / 12 lb 12.4 oz (12.775 lb)
Mentioned in
-- Original-techn. papers.
Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
