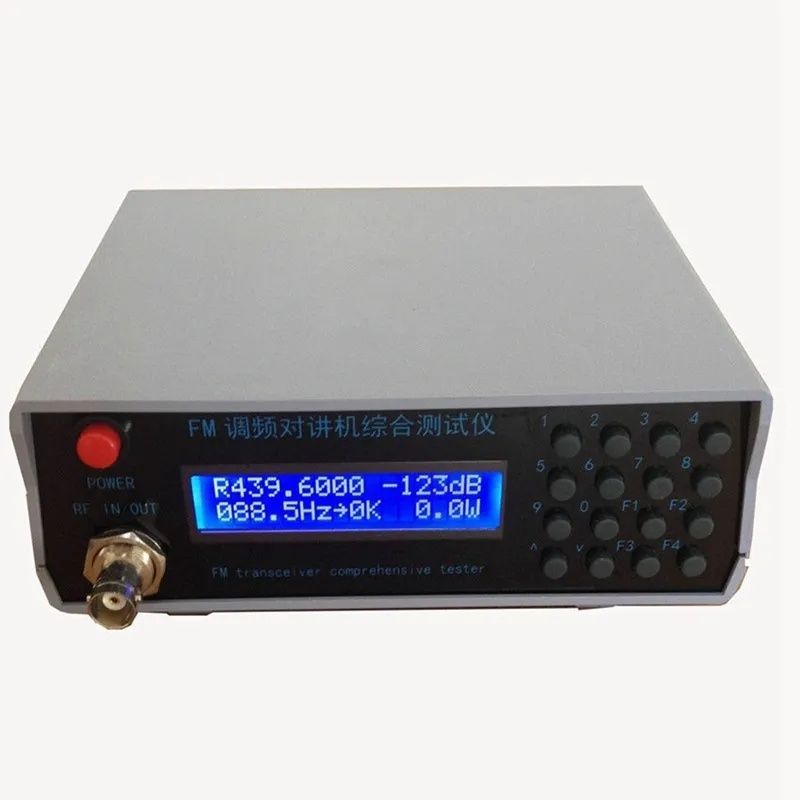

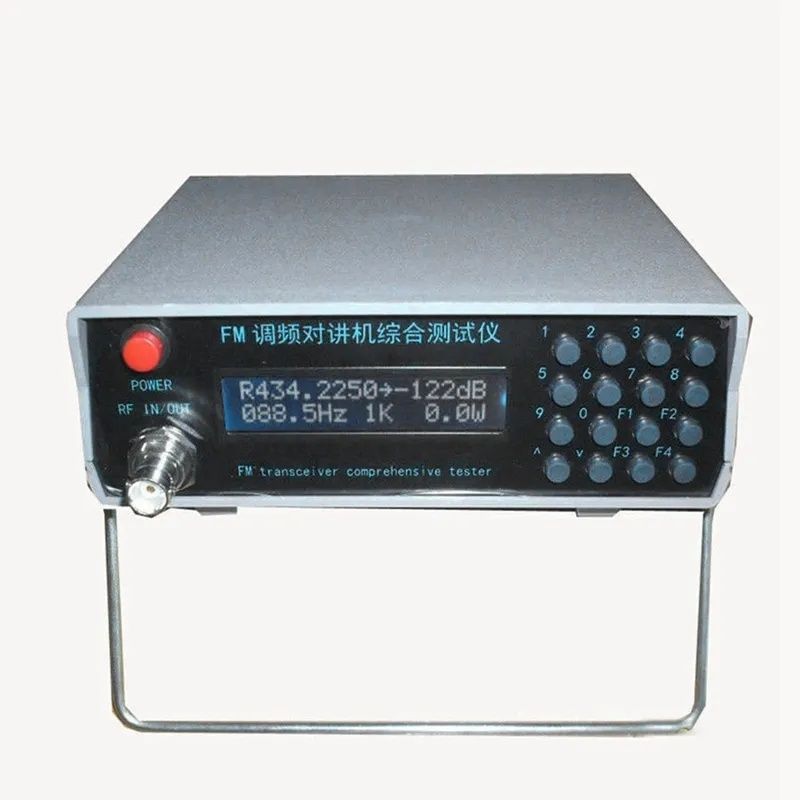

Генератор ФМ частот 1-470 МГц вимірювач потужності рацій 0,15-64 W
Вимірювач чутливості рацій -90dBm -152 bDm
CTCSS Frequency Meter генератор сигналу гсс Г

Прилад з блоком живлення 12В 1А.
Також в комплекті є перехідник на SMA.

Transmitting Measurement:

1. Frequency measurement 10Mi ¹½ 900M, Resolution 1K or 0.1K

2. Power measurement 0.1 Wi½ 64W

3. Sub-audio measurement 50HZi¹½ 260HZ analog sub-tone and standard digital subtone

Receiving Measurement:

1. RF signal generator 1MHz-470MHz

2. Output level: -152dBm to -90dBm

3. Single tone modulation: 1KHz 2KHz 3KHz optional, output modulation: 3K

4. Subtone output: 50Hz-260Hz analog subtone and standard digital subtone, output amplitude: 0.5K

III. Repeater Test:

It is specially developed for debugging and measuring U/ V repeaters and FM radios. The signal generator can work in duplex mode, even if the machine under test is placed in the transmitting state without affecting the generator's operation, it can be used for measurement in the repeter state of the repeater.

Parameters:

Working voltage: 8-12V DC (DC)

Working current: 200mA

Colour:As Shown

Material:metal+plastic

Package Contents:

1 x CTCSS Frequency Meter

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

UV-9R PRO, UV-9R plus, dr-1801, uv-5r, uv-5k

Baofeng: UV5R (All models), UV-82, uv-13pro, uv-s9plus, BF-F8HP, BF-F8+, BF-H5, BF-H6, BF-H7, TP-8Plus, UV-S9Plus, BF-666s/777s/888s etc Baofeng Radio Models；

for Kenwood TH:TH-D7, TH-D7A, TH-D7AG, TH-D7E, TH-F6, TH-F6A, TH-F7,TH-F7E,TH-G71,TH-G71A,TH-G71E,TH-K2,TH-K2A,TH-K2E,TH-K2ET,TH-21,TH-21AT,TH-21BT,TH-22,Th-22A,TH-22At,TH-22E,TH-25,TH-26,TH-27

TK-208/308,TK-220/320,TK-240/340,TK-240D/340D,TK-248/348,TK-250/350/353,TK-260/360,TK-260G/360G,TK-270/370,TK-270G/370G,TK-272G

WOUXUN:KG-689, KG-689 PLUS, KG-669, KG-669 PLUS, KG-659, KG-699E, KG-UVD1;

PUXING:PX-777, PX-777 PLUS, PX-666, PX-888

QUANSHENG:TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT, TG-UV UV-K5 UV-K5(8) (8) UV-5R Plus UV-K5(99) (99)

BF-UV5RD, BF-UV5RE, BF-UV5REPlus, BF-UV82, BF-UVB5 B6, также подходит для раций любых иных фирм и моделей, в т.ч. популярных фирм и моделей:

MOTORALA моделей:
DP4400, DP4400e, DP4401, DP4401e, DP4600, DP4600e, DP4601e, DP4800, DP4800е, DР4801, DP480le, R7 і R7а;

BAOFENG UV-13R Pro V2;

Baofeng BF-888S;

MIDLAND G5;

Baofeng BF-M4;

WLN KD-C1;

MIDLAND GXT-1050;

Motorola Talkabout T82 Extreme Quad;

Baofeng BF-A58S;

Cobra MR HH350 FLT;

Baofeng UV-9R Plus;

Hytera TC-508;

Motorola DP4801 EX;

ALINCO DJ-MD40;

Kenwood NX 320;

Yaesu FT3D
