Набір для embedded-розробника на архітектурі RISC-V2A. Склад:
- програматор-відладчик WCH-Link
- плата розробника CH32V203C8T6-EVT-R0
- плата розробника CH32V003F4P6-EVT-R0

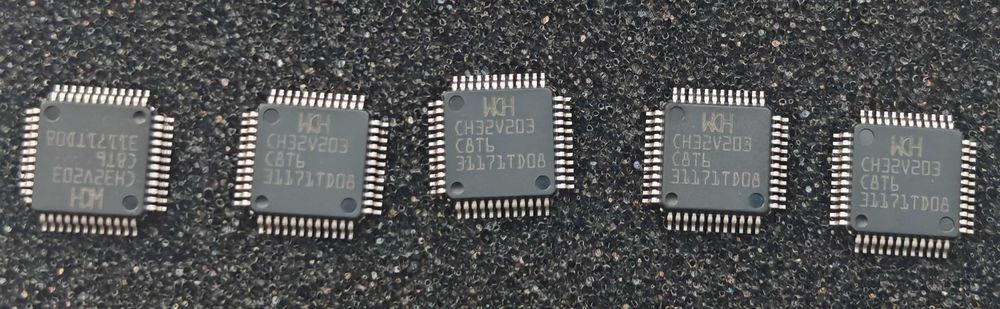

- 5 штук мікроконтроллерів CH32V203C8T6

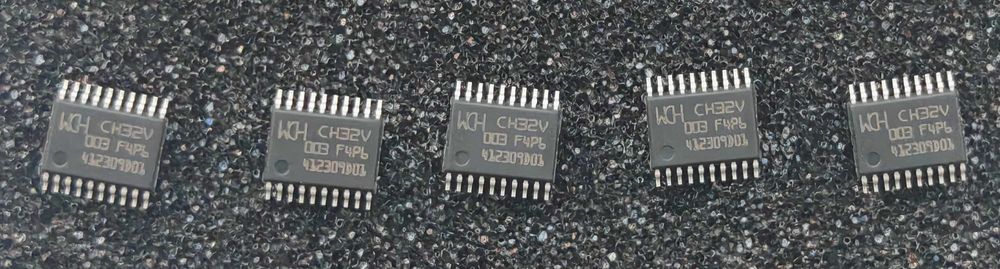

- 5 штук мікроконтроллерів CH32V003F4P6

The CH32V203 is an industrial-grade enhanced low-power general-purpose MCU based on 32-bit RISC-V core. The CH32V203 features high performance, and supports up to 144MHz system clock frequency. The operating power consumption can be as low as 45uA/MHz. CH32V203 integrates 2-channel USB interface which supports USB Host and USB Device functions. The CH32V203 provides 1-channel CAN interface (2.0B active), 2-channel OPA, 4 UARTs, 2 IICs, 12-bit ADC, 10-channel TouchKey and other peripheral resources. Several packages such as TSSOP20, QFN28 QFN48, LQFP32 and LQFP48 are available for users.

CH32V003 series is based on the QingKe RISC-V2A core design of industrial-grade general-purpose microcontroller, support 48MHz system main frequency, with wide voltage, 1-wire SDI, low-power consumption, ultra-small package, etc. CH32V003 series built-in a group of DMA controller, a group of 10-bit ADC, a group of OPA, multiple timers and standard communication interfaces USART, IC, SPI, etc.

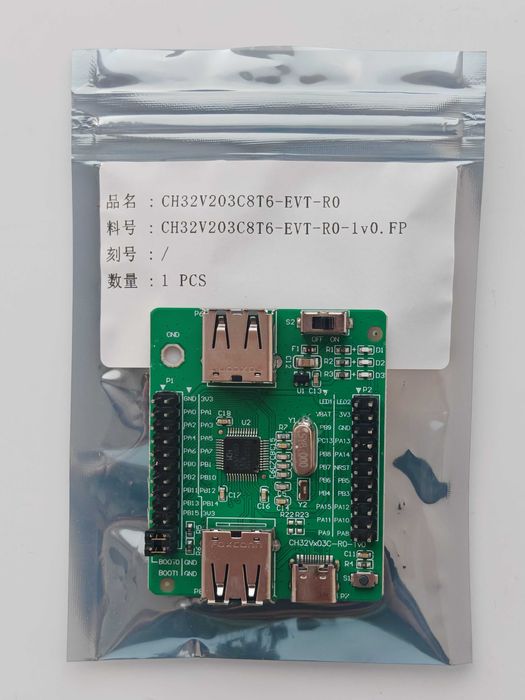

CH32V203C8T6-EVT-R0
* Qingke V4B, up to 144MHz system clock frequency.
* Single-cycle multiplication and hardware division.
* 20KB SRAM, 64KB Flash.
* Supply voltage: 2.5V/3.3V. GPIO unit is supplied independently.
* Low-power modes: sleep/stop/standby.
* Down to 44.65uA/MHz in Run mode.
* Down to 17.90uA/MHz in Sleep mode.
* Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD).
* 1 x 18-channel general DMA controllers.
* 2 amplifiers.
* 10-channel 12-bit ADC, 10-channel TouchKey.
* 4 timers.
* One USB2.0 full-speed host/device interface.
* One USB2.0 full-speed device interface.
* 4 UARTs.
* One CAN interface (2.0B active).
* 2 IIC interfaces, 2 SPI interfaces.
* 37 I/O ports, can be mapped to 16 external interrupts.
* CRC calculation unit, 96-bit unique ID.
* Serial 2-wire debug interface.

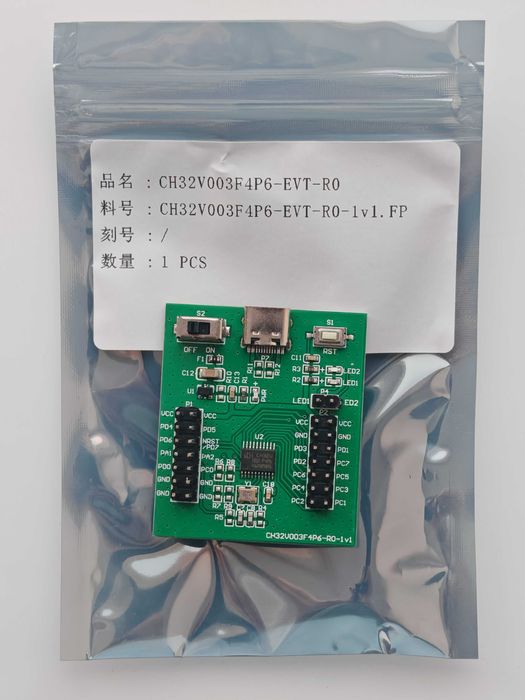

CH32V003F4P6-EVT-R0
* QingKe 32-bit RISC-V2A processor with 2-level interrupt nesting support
* Up to 48MHz system main frequency
* 2KB SRAM, 16KB Flash
* Power supply voltage: 3.3/5V
* Multiple low-power modes: Sleep, Standby
* Power up/down reset, programmable voltage detector
* 1 group of 1-channel general-purpose DMA controller
* 1 group of OPA
* 1 group 10-bit ADC
* 1 16-bit advanced-control timer and 1 16-bit general-purpose timer
* 2 watchdog timers and 1 32-bit SysTick timer
* 1 USART interface, 1 group of IC interface, 1 group of SPI interface
* 18 I/O ports, mapping an external interrupt
* 64-bit chip unique ID
* 1-wire serial debug interface(SDI)

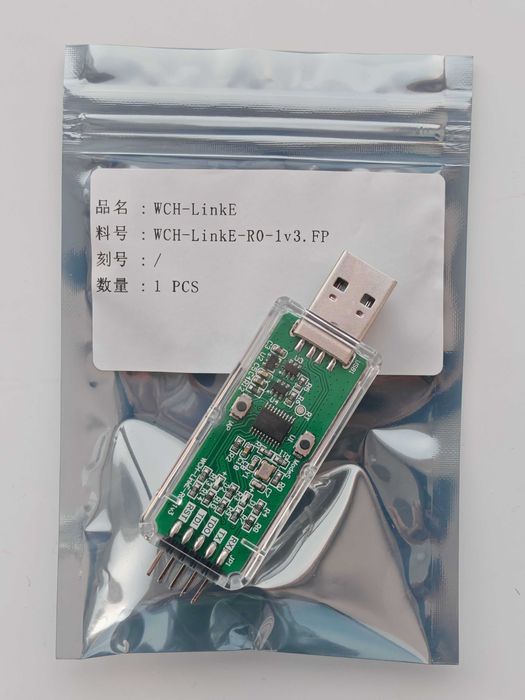

WCH-Link:
When using SDI mode for program downloading and debugging, 4 lines are generally used, power line VCC, ground line GND, data line SWDIO, clock line SWCLK. the evaluation board of CH32V003F4P6 should use WCH-LinkE for downloading and debugging, single-wire communication, only SWDIO is needed to connect PD1, SWCLK is not used.

За потреби вишлю посилання на офіційний сайт та/або завантажені мною матеріали.
