... можливий запуск від PSU 12V ! ...

... або від серверного PSU...

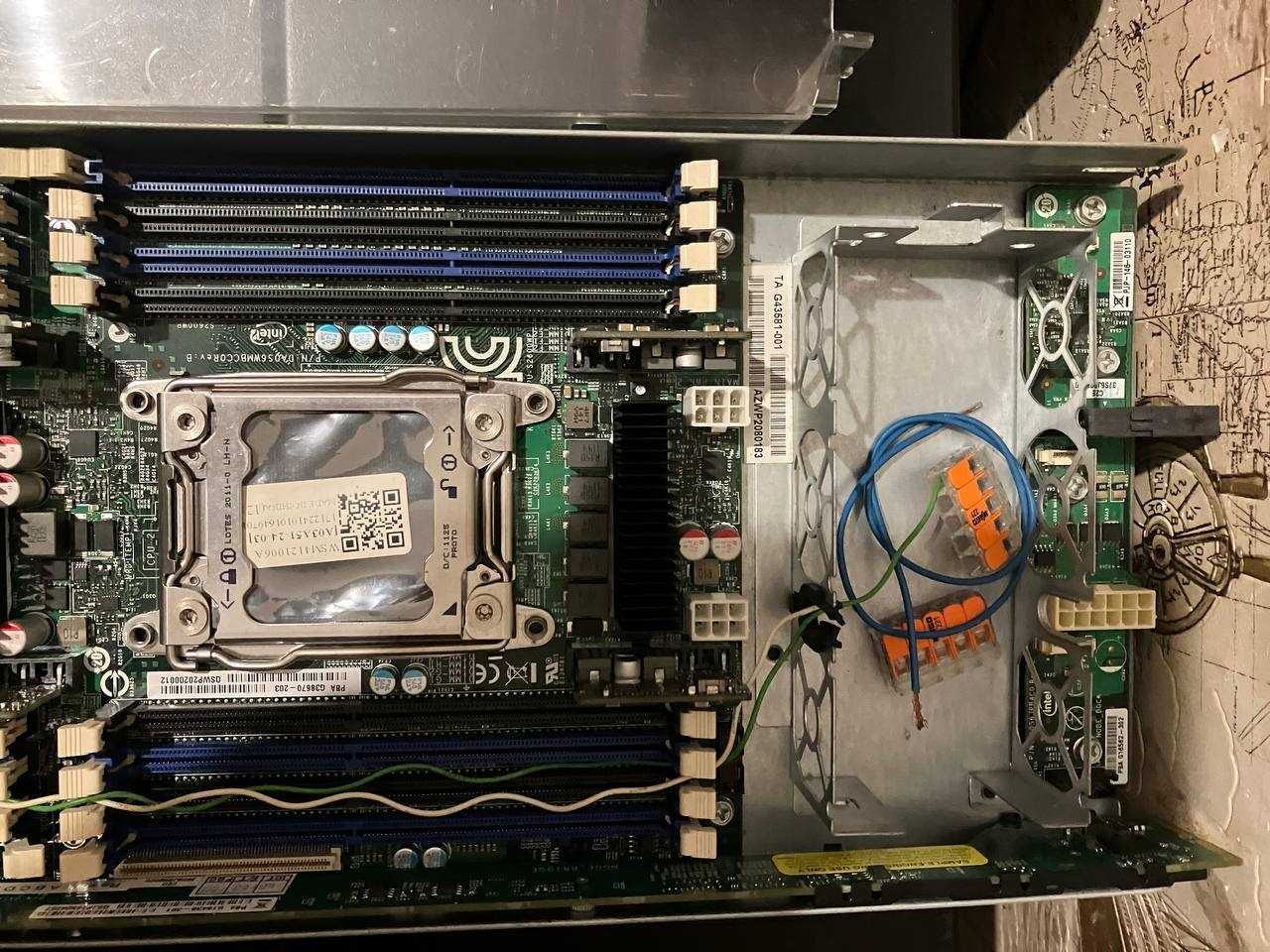

Intel S2600WP Dual LGA2011 E5-2600v1/ v2 DDR3 Server Board

Specifications:

Compatible Product SeriesIntel® Xeon® Processor E5-2600 v2 Product Family
Board Form FactorCustom 6.8'' x 18.9''
Chassis Form Factor2U Rack
SocketSocket R
Integrated Systems AvailableYes
Integrated BMC with IPMIIPMI 2.0
Rack-Friendly BoardYes
TDP135 W
Included ItemsOEM 10 pack includes (10) Intel® Server Board S2600WP.
Board ChipsetIntel C602 Chipset
Target MarketHigh Performance Computing

Supplemental Information

Embedded Options AvailableNo
Datasheet
DescriptionA high density server board supporting two Intel® Xeon processors E5-2600 family, 16 total DIMMs with two DIMM per Channel designed for maximum memory capability and I/O capability; an ideal option for Datacenters and High Performance Computing.
Additional Information

Memory Specifications

Max Memory Size (dependent on memory type)512.7 GB
Memory TypesDDR3 ECC UDIMM 1333/1600, RDIMM 106********600/1866, LRDIMM 1333/1600/1866
Max # of Memory Channels8
Max Memory Bandwidth119.4 GB/s
Physical Address Extensions46-bit
Max # of DIMMs16
ECC Memory Supported ‡Yes

Processor Graphics

Integrated Graphics ‡Yes
Graphics OutputD-sub
Discrete GraphicsSupported

Expansion Options

Max # of PCI Express Lanes72
PCI Express Revision3.0
PCIe x8 Gen 31
PCIe x16 Gen 34
Connector for Intel® I/O Expansion Module x8 Gen 31

I/O Specifications

# of USB Ports5
USB Revision2.0
Total # of SATA Ports6
RAID ConfigurationUp to SW Raid 5 (LSI + RSTE)
# of Serial Ports1
# of LAN Ports2
Integrated LAN2x 1GbE
FirewireYes
Embedded USB (eUSB) Solid State Drive OptionNo
Integrated SAS Ports4
Integrated InfiniBand*No

Package Specifications

Max CPU Configuration 2
